Ventec W400 AOV Weather Station

Select Amps Required
Select Rain Sensor & Wind Sensor
Select Thermostat Control & Retractive Day Switch
Select CD 400 CO2 Sensor
From£385.00+VAT
Ventec W400 AOV Weather Station—
£385.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support

Datasheets & Downloads

1 file
DATA SHEET
2023-07_400-SERIES-aov-DS_v8.pdf
Download
O Range weather input

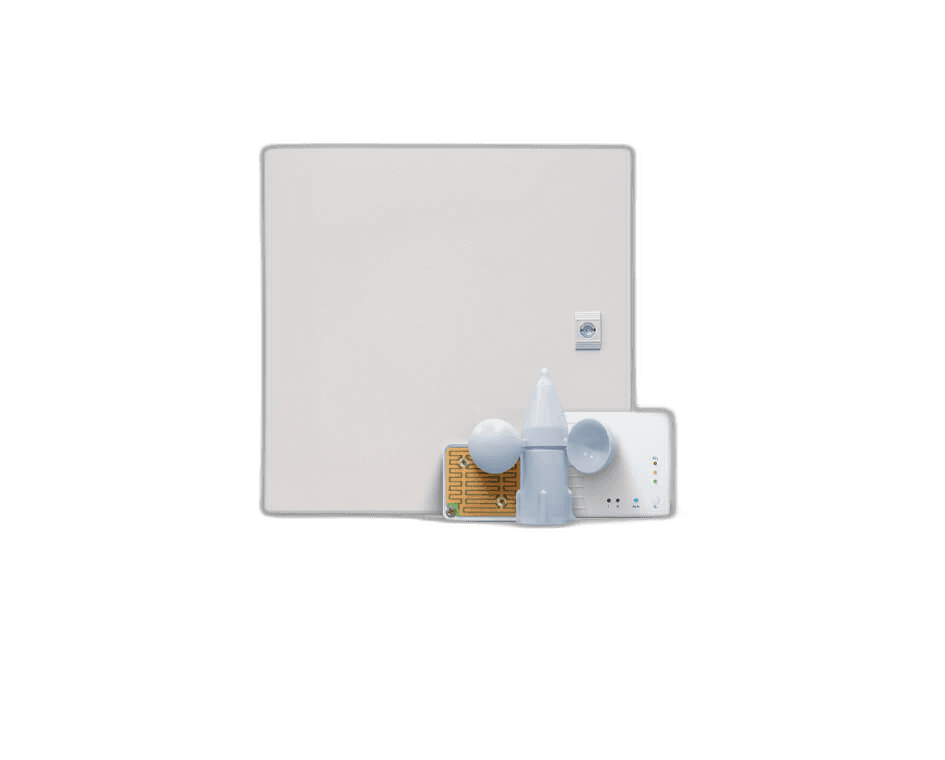

W400 — combined wind & rain weather station

A single roof-mounted unit that delivers both wind speed monitoring and rain detection to the O Range AOV panel — replacing separate WS400 and RS 400 devices with one sensor, one wiring run, and full weather-responsive ventilator control.

WIND + RAIN
Monitors wind speed and rainfall simultaneously from a single roof-mounted unit.
AUTO CLOSE
Signals the O Range panel to close ventilators when wind exceeds threshold or rain is detected.
ONE WIRING RUN
Replaces separate WS400 + RS 400 devices — fewer roof penetrations, simpler commissioning.
AUTOMATIC RESET
Ventilators reopen when wind subsides and the sensor surface dries — no manual reset.
FIRE OVERRIDE
Smoke and fire signals override all weather-close commands — life-safety always takes priority.
RECOMMENDED UPGRADE
Preferred over separate wind and rain sensors on new O Range SHEVS installations.
24VDC Operation
2-in-1Wind + Rain
AutoReset

What it does

The W400 combines anemometer-based wind sensing and an integrated rain detection element in a single roof-mounted housing. When wind speed exceeds the configured threshold — or rain is detected on the sensor surface — the unit signals the O Range panel to close any open ventilators, protecting actuators and the building fabric from weather stress and water ingress.

Once conditions return to normal, the panel reopens the ventilators automatically. Every weather-close event is logged on the O Range panel for the Golden Thread audit trail.

Who it’s for

Specified on all new O Range SHEVS installations where comprehensive weather protection is required. It is the preferred upgrade over separate wind and rain sensors for M&E designers, SHEVS installers and building services engineers who want to minimise roof penetrations and simplify commissioning while delivering full weather-responsive AOV control.

Integration

Connects to the wind and rain sensor inputs on the O Range control panel via a single cable. Configuration is handled through O Range Connect, where setpoints, dwell times and the affected zones are mapped against the unit.

Standards & Compliance

  • BS 7346-8 compatible SHEVS
  • BS EN 12101-2 compatible SHEVS
  • O Range panel compatible

Need help specifying your system?

Our UK technical team can review your drawings and recommend the right sensors and panels for your project. Next-day delivery on stocked items.

Call 01202 725 677

Technical Specifications

SpecificationDetail
DetectionCombined wind speed + rain (single unit)
Operating Voltage24V DC (panel-supplied)
Panel ConnectionWind and rain sensor inputs — O Range control panel
ReplacesWS400 Wind Sensor + RS 400 Rain Sensor
Override BehaviourOverridden by fire/smoke detection
StandardsFor use within BS 7346-8 and BS EN 12101-2 compliant SHEVS
