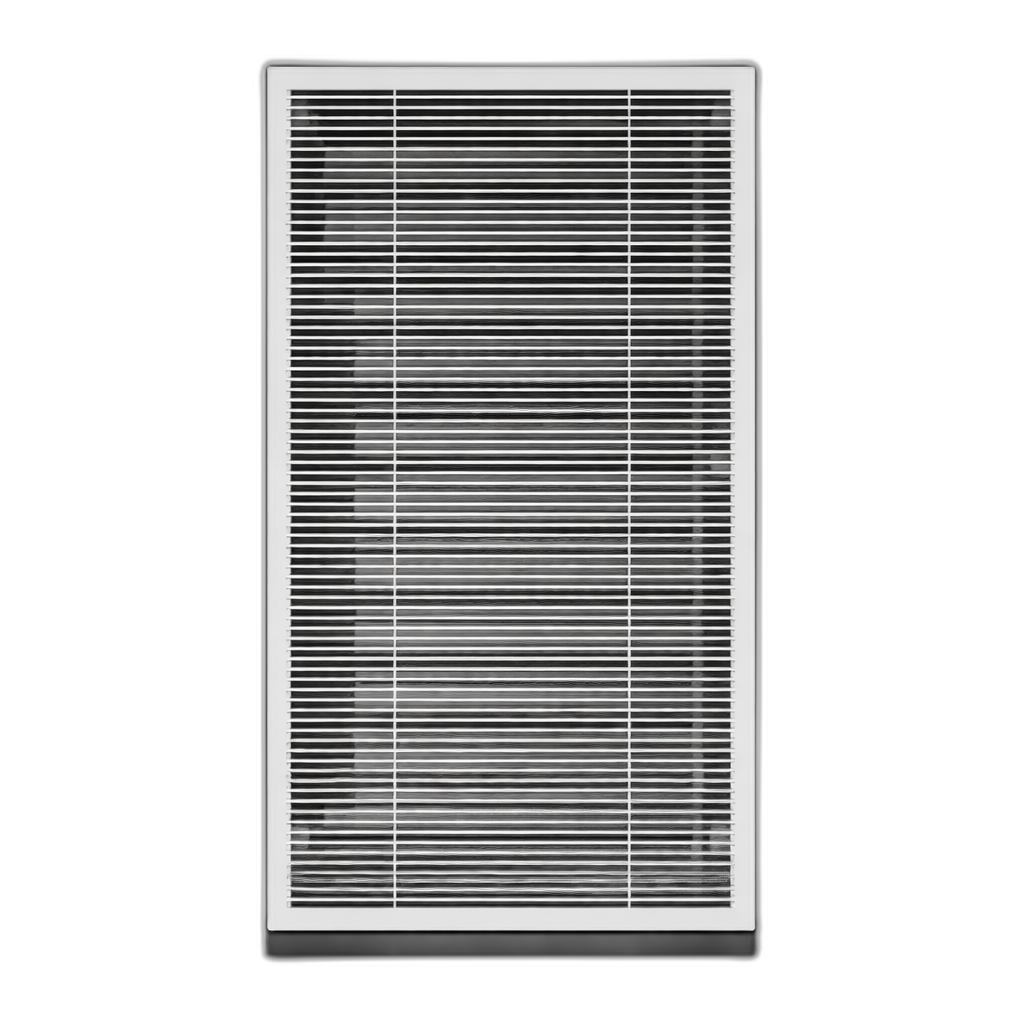

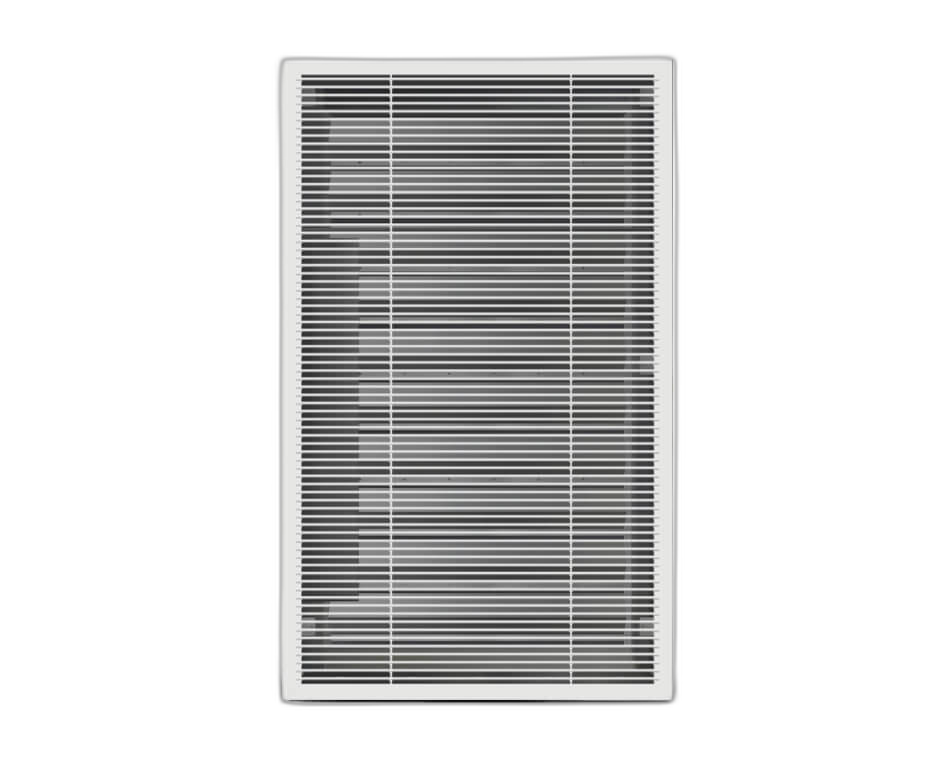

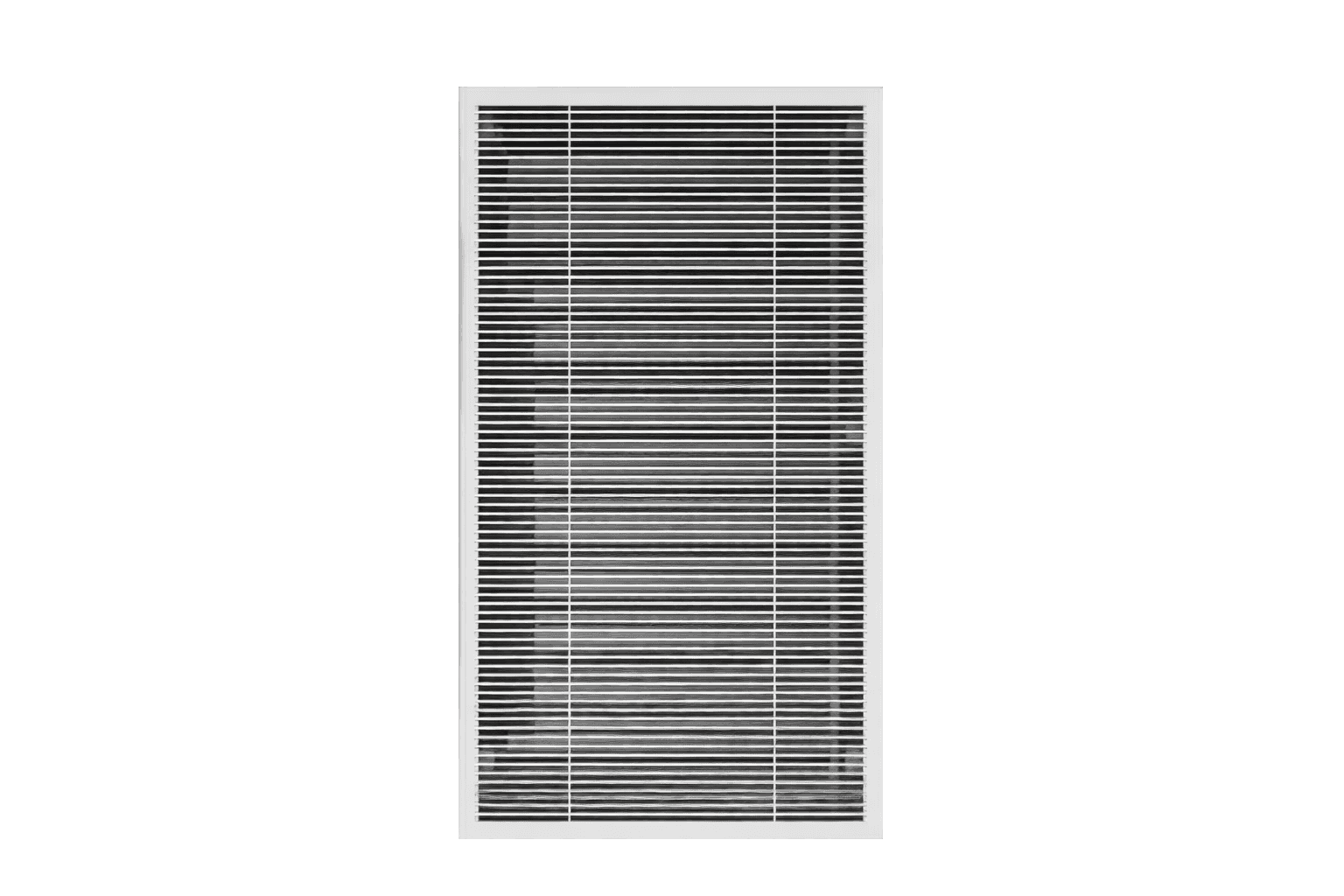

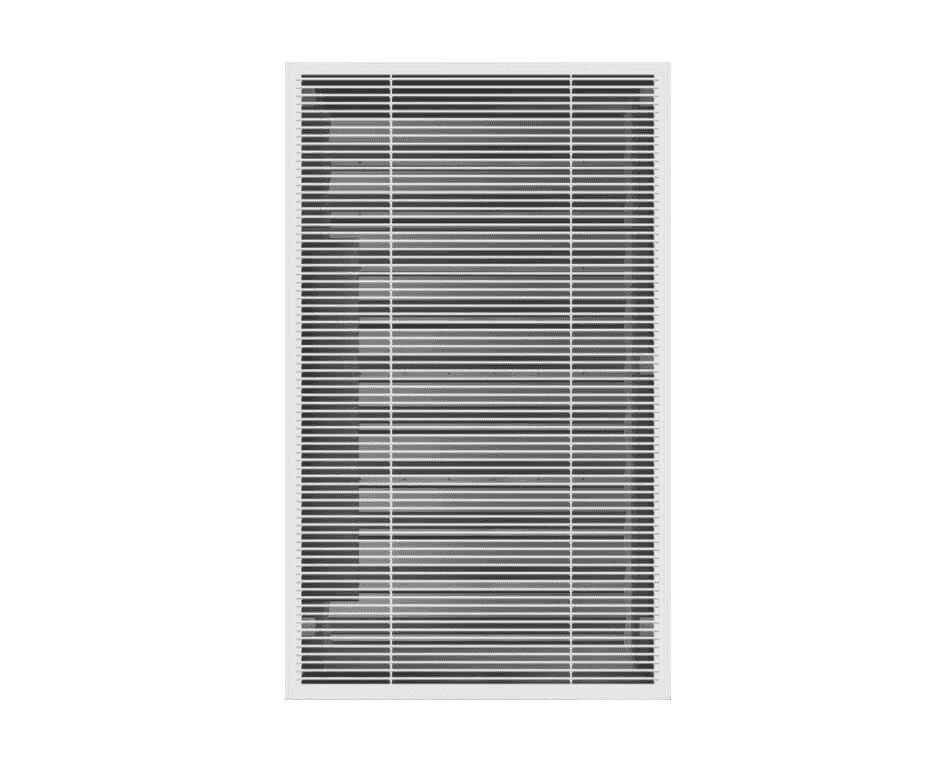

AOV Damper
Price Range
Sort by
Product Features & Specifications
Key Features
- Certification
- BS EN 12101-8 certified
- Application
- Shafts, ducts & HVAC systems
- Blade Configuration
- Circular, rectangular & multi-blade
- Leakage Class
- Class 3 (BS EN 1751)
- Fire Resistance
- 120 minutes (E600)
- Actuator
- Spring-return fail-safe
Technical Specifications
- Operating Temp
- Up to 600°C (E600)
- Power Supply
- 24V DC / 230V AC
- IP Rating
- IP54
- Leakage Class
- Class 3 (BS EN 1751)
- Closing Time
- <60 seconds
- Fail-Safe
- Spring-return closed on power loss
