Ventec SCD LDN Bespoke Smoke Control Damper

BS EN 12101-8 AOV Dampers for both natural & smoke ventilation. Buy the Ventec SCD LDN Damper from AOV-Direct. Next day despatch available on all stock items.

POAprice on application

Contact our team for a tailored quote on this product.

Call For Quote
Ventec SCD LDN Bespoke Smoke Control Damper—POA
Call For Quote
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support

Datasheets & Downloads

2 files
DATA SHEET
2023-03_aov-direct-scd-ldn-smoke-damper.pdf
Download
DATA SHEET
ventec-scd-ldn-smoke-control-damper-1377_VentTrade_Ventec_SCD_LD_Smoke_Control_Damper.pdf
Download
UK supplied & supported

Ventec SCD LDN Smoke Control Damper

A flush-fit, two-part lobby damper for smoke shafts and pressurisation systems in multi-storey residential and commercial buildings — available in 0.6m², 1m² and bespoke sizes manufactured to order.

Two-Part Assembly

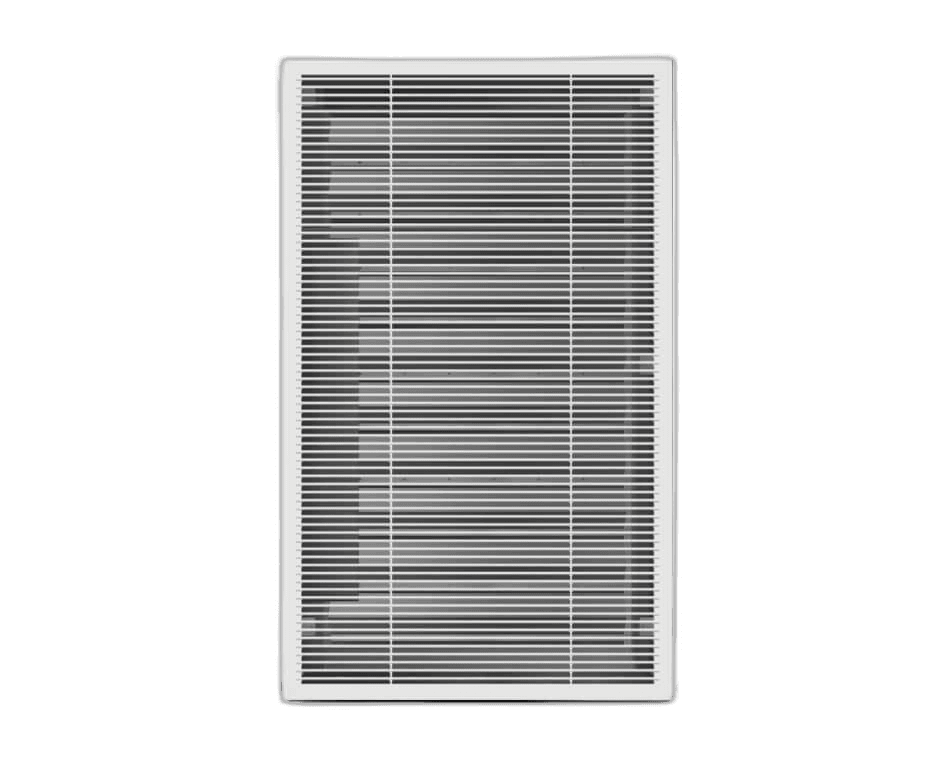

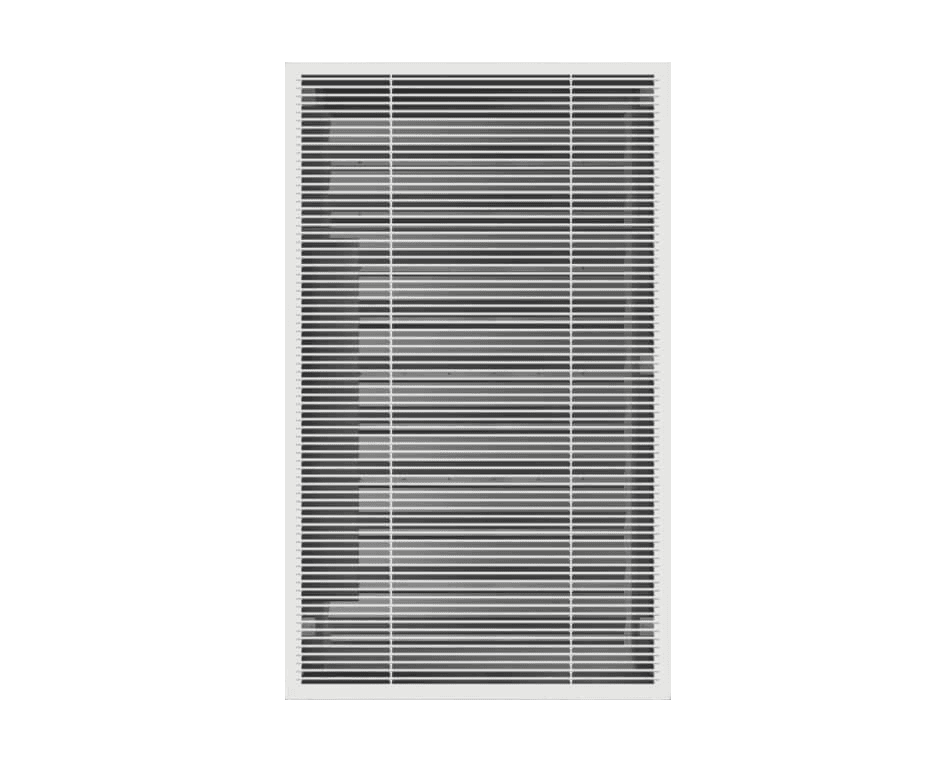

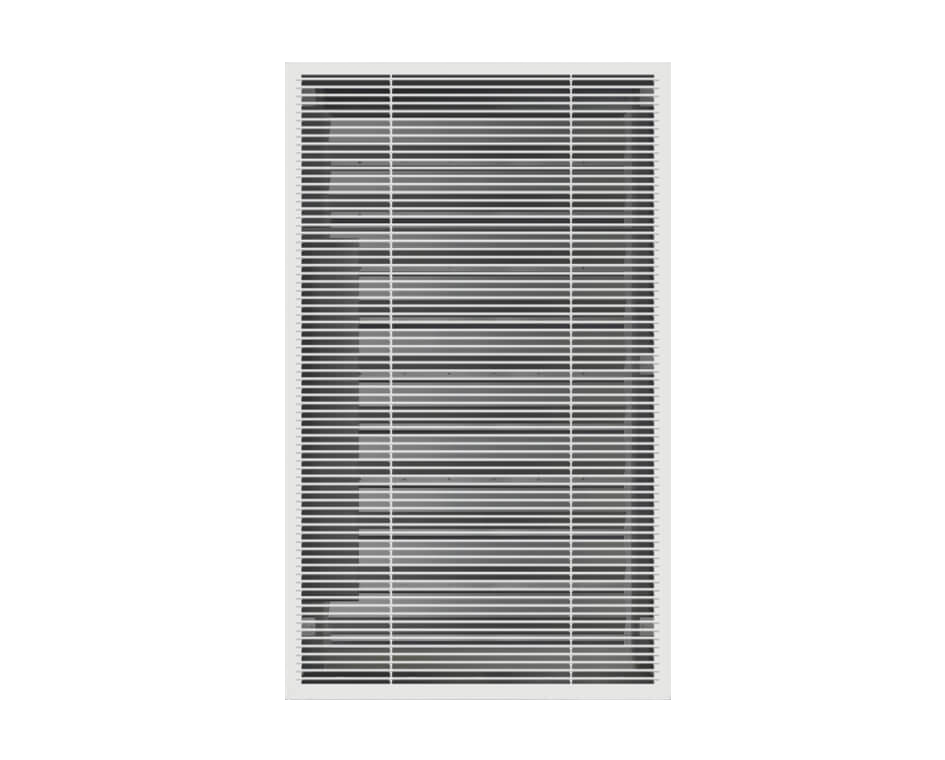

Sleeved damper + aesthetic grille keeps the technical hardware concealed behind a clean lobby finish.
Bespoke Sizing
Custom aperture dimensions manufactured to order to suit non-standard builders’ openings or specific GFA requirements.
Power Open / Closed
24V actuator drives the blade from normal-closed to fully open in under 60 seconds.
10,000 Cycle Life
Minimum 10,000 operations of durability for confident long-term reliability in occupied buildings.
Flush-Fit Install
Peripheral flange allows the damper to sit flush in drywall or masonry / concrete apertures — suits both new-build and refurbishment.
400 Series Compatible
Wires directly into the 400 Series AOV control panel ecosystem alongside other Ventec smoke-shaft hardware.
<60sOpen Time
10kCycle Life
24VDC Operation
4–6wLead Time

When bespoke SCD LDN is needed

Pressurisation system designs to BS EN 12101-6 produce specific required damper aperture sizes based on the building height, floor area and occupancy. Where existing builder’s apertures are non-standard, or where the pressure differential design requires an intermediate GFA, a bespoke SCD LDN ensures compliance without requiring structural alterations. Particularly common on refurbishment projects where apertures are already formed in existing construction.

How it works

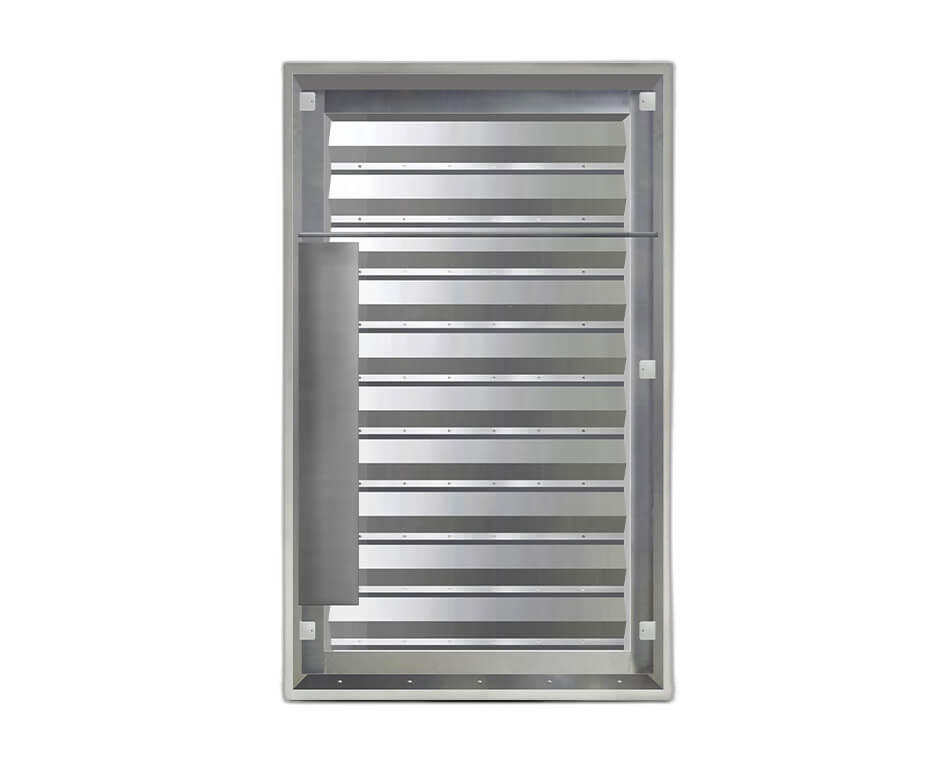

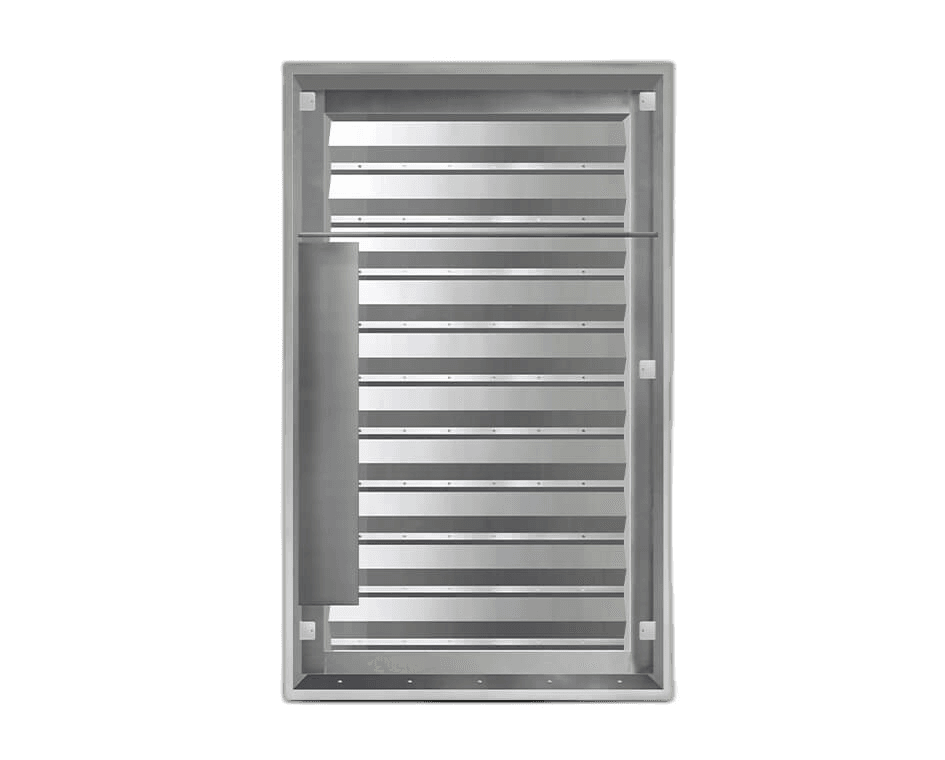

The main sleeved damper carries a peripheral flange and fits flush into the builder’s aperture. A 24V power-open / power-closed actuator drives the damper blades from the normal-closed position to fully open on demand from the AOV control panel. Internal surfaces are spray-painted matt black so the unit reads as a clean dark interior behind the supplied aesthetic grille — no visible mechanical clutter in occupied lobbies.

How to order

Call our technical team on 01202 725 677 with the required aperture dimensions (W×H), required GFA, wall construction type (drywall or masonry / concrete) and the system standard being designed to. We will confirm feasibility, provide a quotation, and advise on lead times.

Standards & Compliance

  • CE marked to 2014/30/EU
  • BS EN 12101-6 pressurisation systems
  • BS EN 12101-8 smoke control dampers
  • 24V DC AOV ecosystem
  • UK manufactured

Need help specifying a bespoke damper?

Our UK technical team can confirm feasibility against your aperture and AOV panel choice.

Call 01202 725 677

Technical Specifications

SpecificationDetail
Actuation24V power open / power closed
Opening Time< 60 seconds
DurabilityMinimum 10,000 cycles
Voltage24V DC
AssemblyTwo-part: sleeved damper + aesthetic grille
FinishMatt black internal surfaces (spray painted)
InstallationFlush-fit into drywall or masonry / concrete aperture
EMC ComplianceCE marked to 2014/30/EU
Control Compatibility400 Series AOV panels
Lead Time4–6 weeks from order
