Ventec AOV SCD LDN 0.6m2 GFA Automatic Smoke Damper

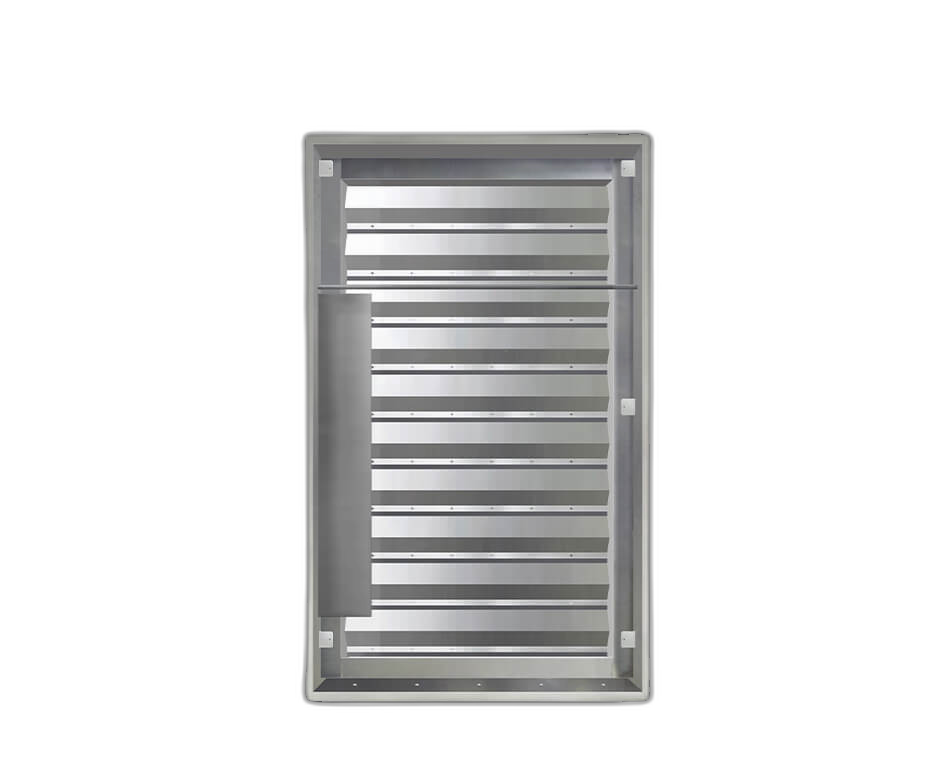

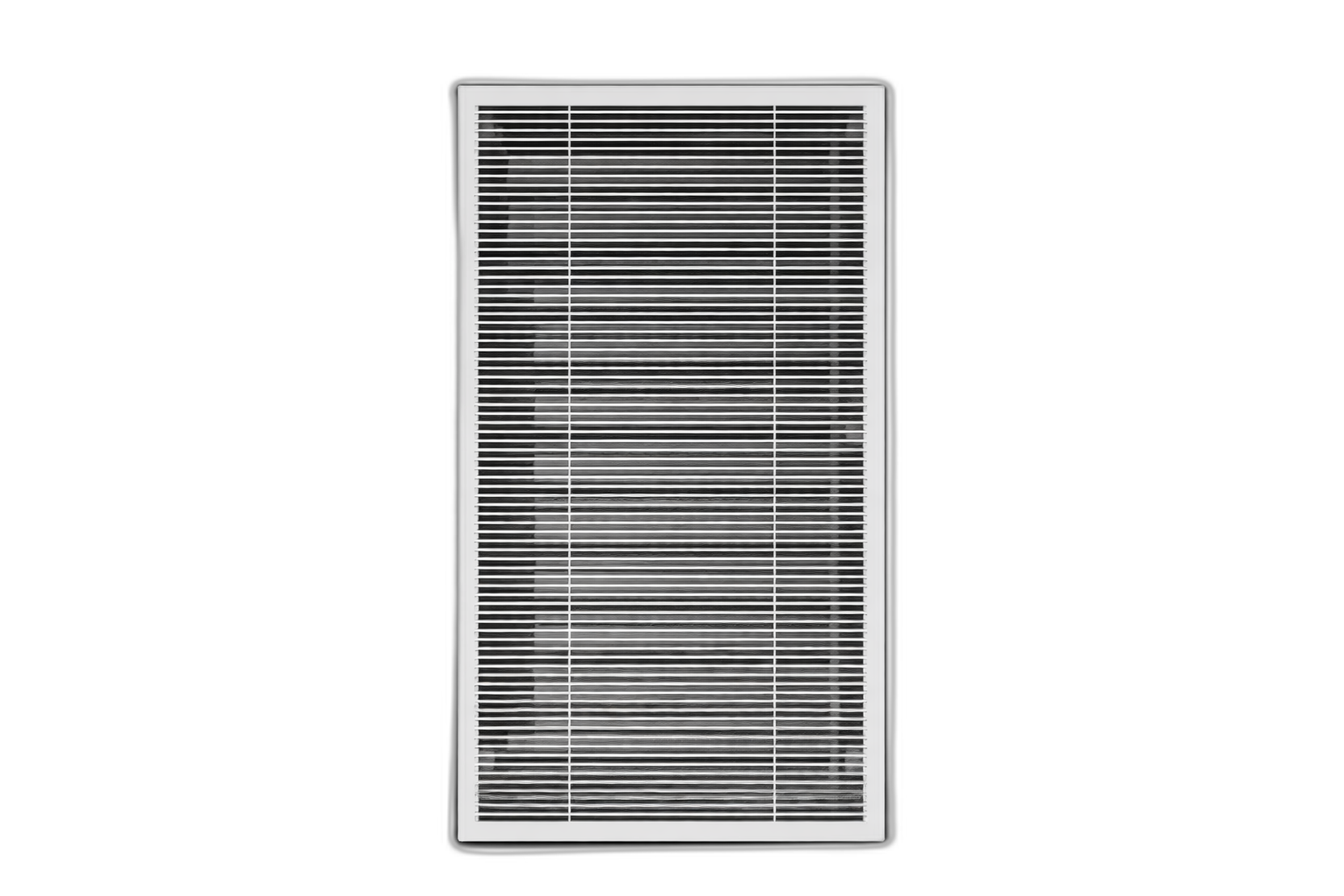

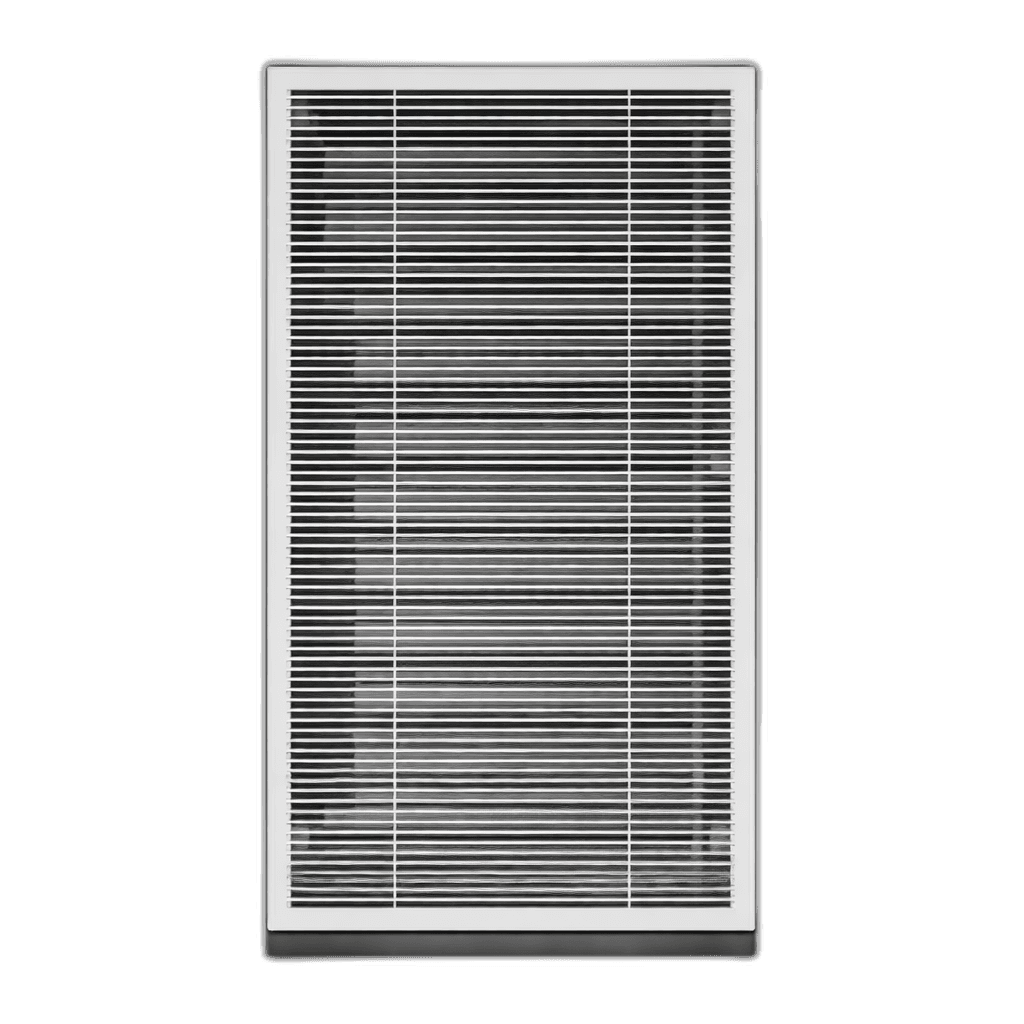

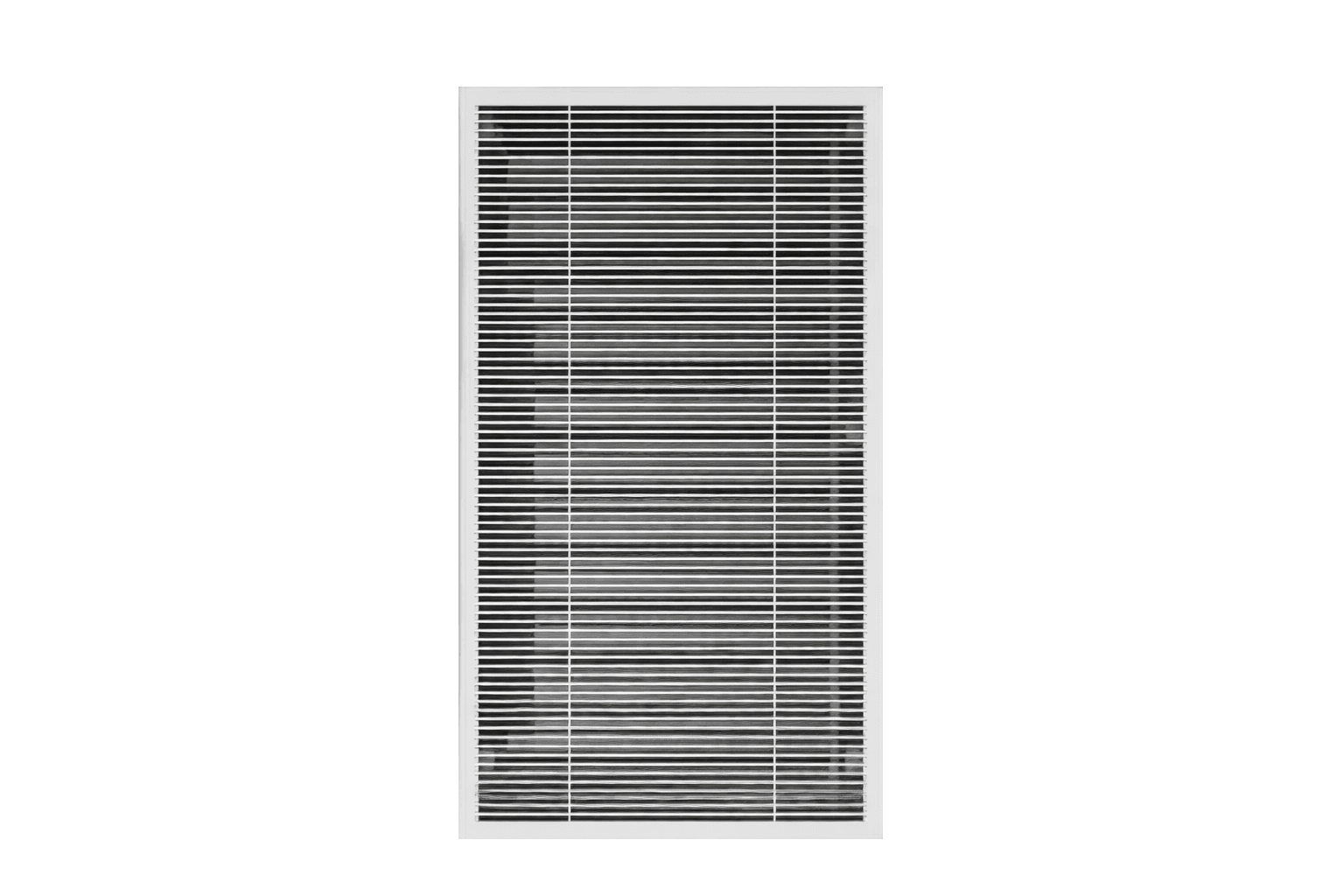

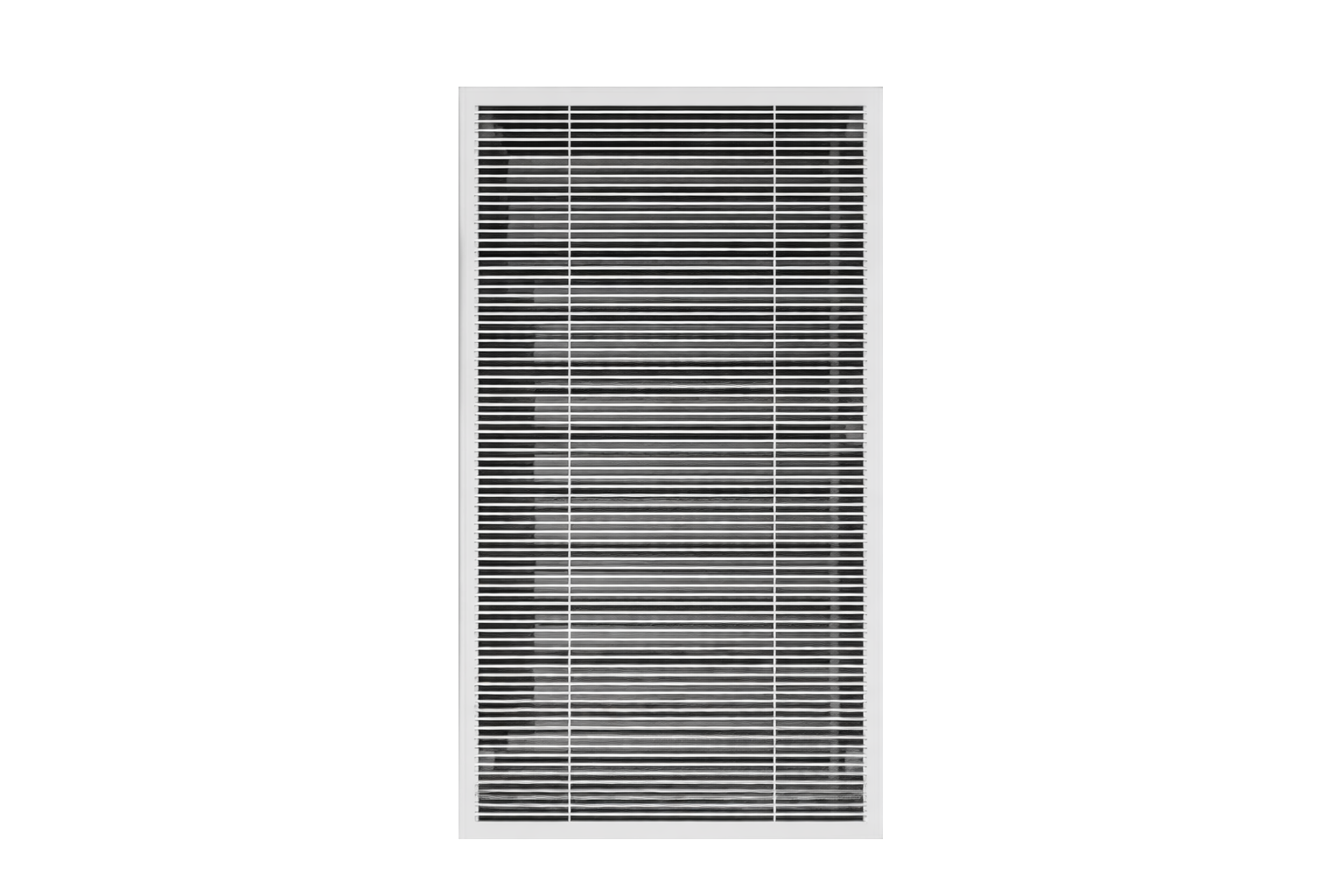

The Ventec SCD LDN Smoke Control Damper has been developed for use in smoke control systems serving multi-storey buildings for both domestic and commercial smoke shafts. These shafts can be dry wall or masonry/ concrete construction. \n \nThe lobby damper assembly consists of two parts; damper and grille. The main sleeved damper with peripheral flange allows it to be fitted flush into the builders aperture. A 24V power open/power closed actuator is used to drive the damper blades from the normal closed position to the fully open position. All damper internal surfaces are spray painted matt black to allow discreet installation behind the supplied aesthetic grille.
Ventec AOV SCD LDN 0.6m2 GFA Automatic Smoke Damper
Datasheets & Downloads
1 fileLDN Smoke Damper
Purpose-designed for multi-storey smoke shaft systems in residential and commercial buildings. Compatible with drywall and masonry/concrete shaft constructions.
Why specify the LDN Smoke Damper
Smoke Shaft Specialist. Purpose-designed for multi-storey smoke shaft systems in residential and commercial buildings. Compatible with drywall and masonry/concrete shaft constructions.
Fire Performance. Certified to BS EN 12101-8 and classified to BS EN 13501-4. Tested to BS EN 1366-10 achieving E120 fire integrity. S 1000 smoke leakage rated.
System Compatibility. Compatible with 400 Series, O Range, 1000-G and 2000-CP control systems, providing flexibility across a wide range of smoke control system architectures.
Configuration options
Lobby Damper (Standard). Sleeved damper with peripheral flange and architectural grille. Available in 50mm increments from 400mm to 1200mm width and 600mm to 1425mm height.
Bespoke Options (Custom). RAL colour grille options available. Sizes typically available in 50mm increments within the standard dimensional range. Consult GFA table for specific free area requirements.
Technical Specifications
Technical Specifications
| Specification | Detail |
|---|---|
| Structural Opening | 800mm (W) x 1200mm (H) |
| Opening Time | < 60 seconds |
| Geometric Free Area | 0.6m2 |
| Voltage | 24v |
| Durability Of Operation | Min. 10,000 cycles |
| Control Pollution Degree | 3 |
| EMC | CE per 2014/30/EU |
| GFA (Geometric Free Area) | 0.6m² |
| Actuation | 24V power open / power closed |
| Durability | C10,000 (min. 10,000 cycles) |
| Assembly | Two-part: sleeved damper + aesthetic grille |
| Finish | Matt black internal surfaces (spray painted) |
| Installation | Flush-fit with peripheral flange into drywall or masonry/concrete aperture |
| EMC Compliance | CE marked to 2014/30/EU |
| Control Compatibility | 400 Series AOV panels |
| Operation | Power open / power close |
| Certified | EN 12101-8: E120 (ve, ho i ↔ o) S |
| GFA | up to 1.2m² |
| Certification | BS EN 12101-8:2011 |
| Classification | BS EN 13501-4 |
| Test Standard | BS EN 1366-10 |
| Fire Rating | E120 |
| Smoke Leakage | S 1000 |
| Compartment Use | AA Multi |
| Nominal Voltage | 24Vdc |
| Voltage Frequency | 50/60Hz |
| Power In Operation | 12 watts |
| Power At Rest | 0.5 watts |
| Power For Wire Sizing | 18VA (Imax 8.2A @ 5ms) |
| Auxiliary Switch | 2 x SPDT |
| Supply Cable | 1m, 3 x 0.75mm², halogen-free |
| Aux Switch Cable | 1m, 6 x 0.75mm², halogen-free |
| Protection Class | III (SELV) |
| Degree of Protection | IP54 |
| Low Voltage | CE per 2014/35/EU |
| Min Width | 400mm |
| Max Width | 1200mm |
| Min Height | 600mm |
| Max Height | 1425mm |
| Sleeve Depth | 175mm |
| Size Increments | 50mm |
| Damper Finish | Matt black |
| Grille | RAL 9010 white (standard) |
| Grille Blade Angle | 40° |
| Grille Blade Pitch | 19mm |
| Ambient Temperature | -30°C to 50°C |
| Ambient Humidity | Max. 95% r.h. non-condensing |
