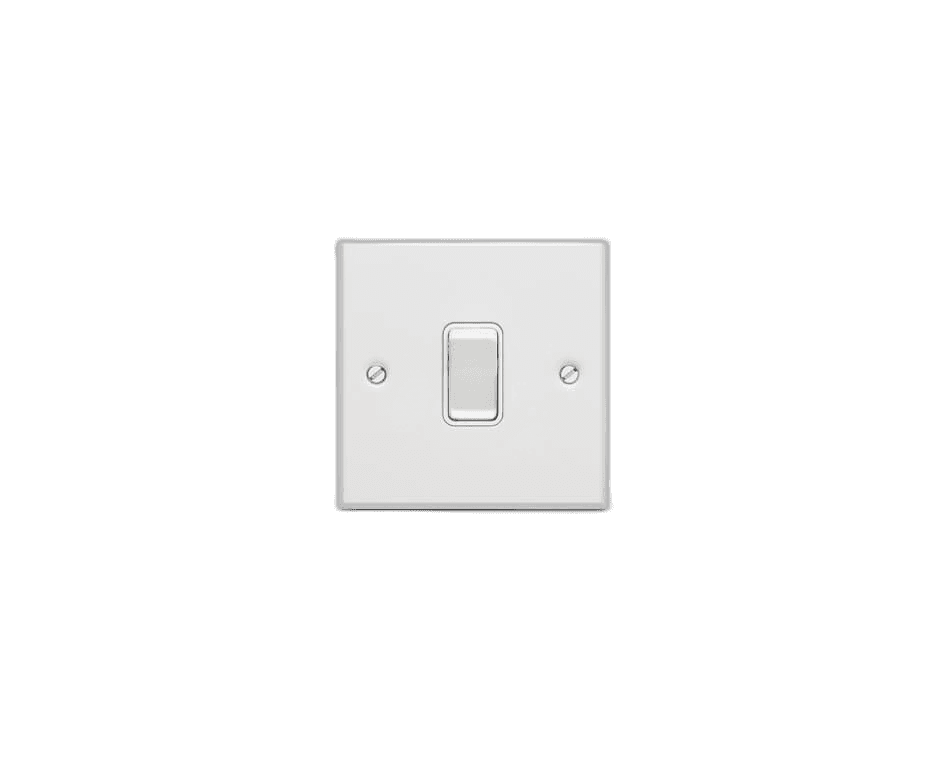

Product image 1
BS EN12101In Stock

Ventec DS 400 AOV Retractive Day Switch

From£75.00+VAT
Ventec DS 400 AOV Retractive Day Switch—
£75.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support

Datasheets & Downloads

1 file
DATA SHEET
2020-03_DS-400-aov-DS_v3-1.pdf
Download
UK supplied & supported

Ventec DS 400 Retractive Day Switch

A clean, surface-mounted momentary switch that gives occupants simple manual control of natural ventilation without touching fire mode. Wires straight into the day-switch input on the AOV control panel.

Retractive Action
Press-and-release sends a single open pulse to the panel — no risk of sustained accidental activation.
Fire-Safe
Automatic fire and smoke detection always takes priority — day operation never compromises life-safety.
Discreet Finish
100×100mm wall plate available in white, chrome, brushed silver or brass effect.
SPDT + Sensor Off
Single-pole double-throw with sensor-off function for flexible integration with sensor inputs.
Multi-Zone
Suitable for multi-zone day-vent control across larger AOV installations.
Standard 3-Core
3-core + earth cable spec keeps installation light — pulls in straight from the panel.
100mmW & H
24VDC Operation
3-core+ Earth Cable
150gWeight

What it does

The DS 400 is a momentary retractive switch — on press, it sends a single open signal to the AOV control panel; on release, the contact opens again. Ventilators stay open until the panel’s auto-close criteria are met (timer, rain detection, wind threshold or occupant close action). The switch does not interfere with fire mode at any point.

Where it’s specified

Specified for commercial buildings, offices, schools and residential developments where occupants need a simple, discreet way to call for natural ventilation. The DS 400 is the standard day-use switch in O Range and 400 Series SHEVS installations and meets the BS 7346 requirement for occupant ventilation control.

Integration with the AOV system

Wired into the day-switch input on the AOV control panel using 3-core + earth cable. Multiple DS 400 units can be placed across floors or wings to allow distributed manual control. All occupant actions remain subordinate to fire / smoke detection signals on the panel.

Standards & Compliance

  • BS 7346-8
  • SHEVS occupant control
  • 24V DC AOV ecosystem
  • UK supplied

Need help specifying day-vent control?

Our UK technical team can advise on switch placement and integration with your AOV control panel.

Call 01202 725 677

Technical Specifications

SpecificationDetail
Switch TypeRetractive (momentary action)
ConfigurationSingle-pole double-throw with sensor-off
Dimensions100mm (W) x 100mm (H)
Current Consumption10 amps
Core Type3-Core + Earth
Operating Voltage24V DC (panel-supplied)
Weight150g
ZonesMultiple
Override StatusSubordinate to fire / smoke detection signals
StandardsFor use within BS 7346-8 compliant SHEVS
