Ventec S400 Series AOV Battery Backup
Select Amps Required
Select Fireman Switches Required
Select Day Switch Required?
From£495.00+VAT
Ventec S400 Series AOV Battery Backup—
£495.00
Ventec S400 Series AOV Battery Backup
£495.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support
Datasheets & Downloads
2 files
UK supplied & supported
Ventec 400 Series
Available from 4A to 20A output, covering everything from small single-zone installations to high-demand commercial smoke control systems.
Up to 20 Amp Output
High-capacity motor output for large AOV installations. Available in 4A, 8A, 13A and 20A configurations to match project requirements.
72-Hour Battery Standby
2x 12V batteries wired in series maintain full emergency open capability throughout a 72-hour standby period.
EN 12101-10 Compliant
Fully compliant with EN 12101-10 for smoke and heat exhaust ventilation systems, providing certified life safety performance.
2-Zone Daily Ventilation
Day-to-day ventilation across two independent zones, enabling individual or grouped window and vent operation alongside smoke control.
Weather Station Option
Optional weather station integration for rain and wind-responsive ventilation management alongside smoke control functions.
Fire Alarm / Smoke Detector Input
Dedicated fire alarm and smoke detector inputs for automatic smoke vent activation on detection of a fire event.
4A to 20A outputpower
BS EN 12101-10certified
1 smoke zonesmoke control
72-hour standbybattery backup
Why specify the Ventec 400 Series
Powerful. Available from 4A to 20A output, covering everything from small single-zone installations to high-demand commercial smoke control systems.
Compliant. Meets EN 12101-10 requirements with 72-hour battery standby. A proven, certified platform for smoke and heat exhaust ventilation.
Flexible. Single-zone smoke control plus 2-zone daily ventilation. Optional weather station adds intelligent environmental control to any installation.
Technical Specifications
Technical Specifications
| Specification | Detail |
|---|---|
| Standby Output Current | 8A |
| Compatible Panel | O Range AOV control panels |
| Mains Input | 230V AC |
| Battery Type | Sealed lead-acid (VRLA) |
| Auto-Recharge | Yes — on mains restoration |
| Fault Output | Yes |
| Standards | BS 7346-8, BS EN 12101-2 standby power compliance |
| Power | 4A to 20A output |
| Certified | BS EN 12101-10 |
| Smoke Control | 1 smoke zone |
| Battery Backup | 72-hour standby |
| Link Panels In Series | Expandable |
| Motor Output Current | 4A / 8A / 13A / 20A (model dependent) |
| Supply Voltage | 24V DC |
| Battery Standby | 72 hours |
| Battery Charging | Automatic with monitoring |
| Smoke Zones | 1 |
| Daily Ventilation Zones | 2 |
| Fire Alarm / Smoke Detector Input | Yes |
| Firefighter Override Switch | Yes |
| Weather Station Input | Optional |
| Day Switch Input | Yes |

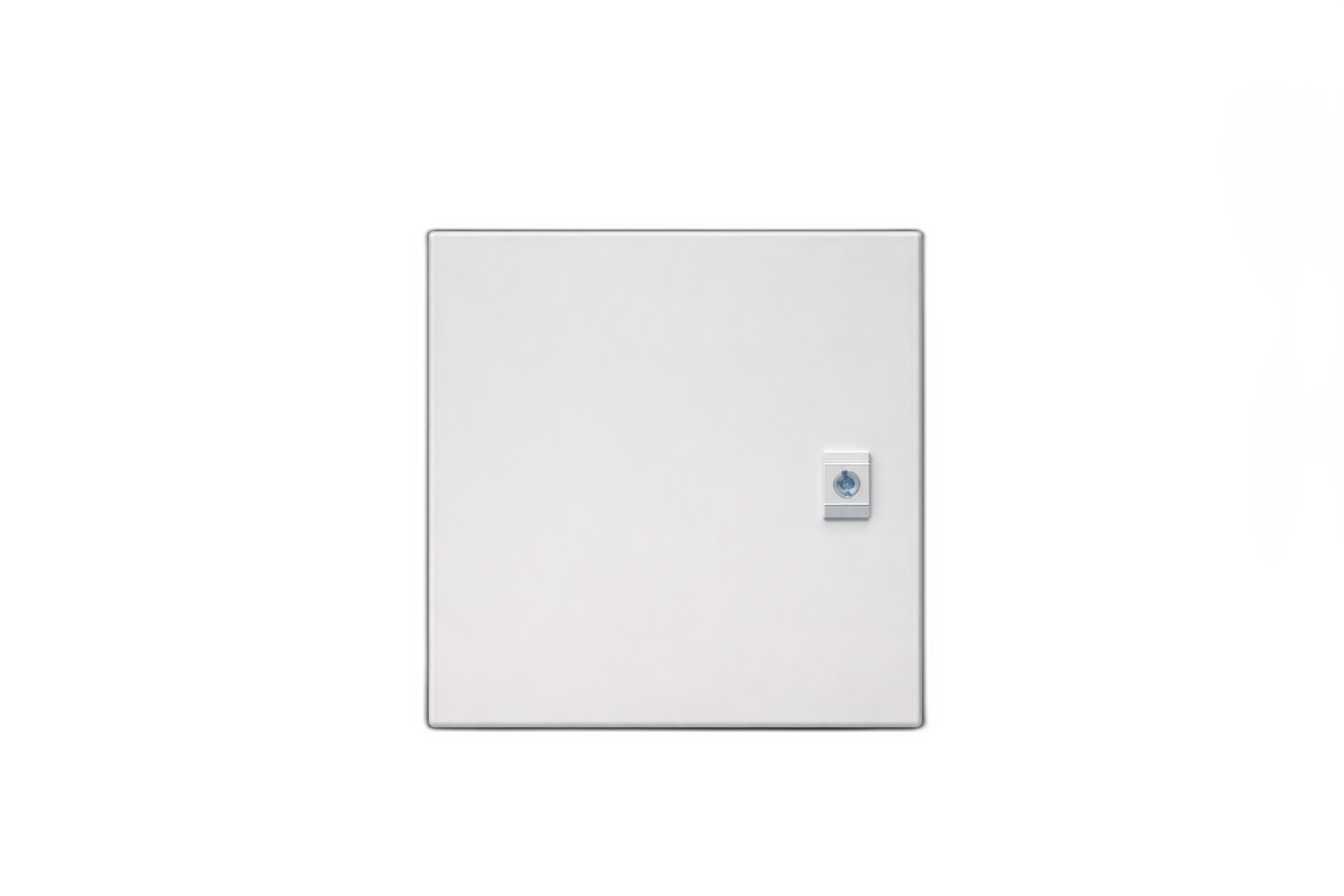

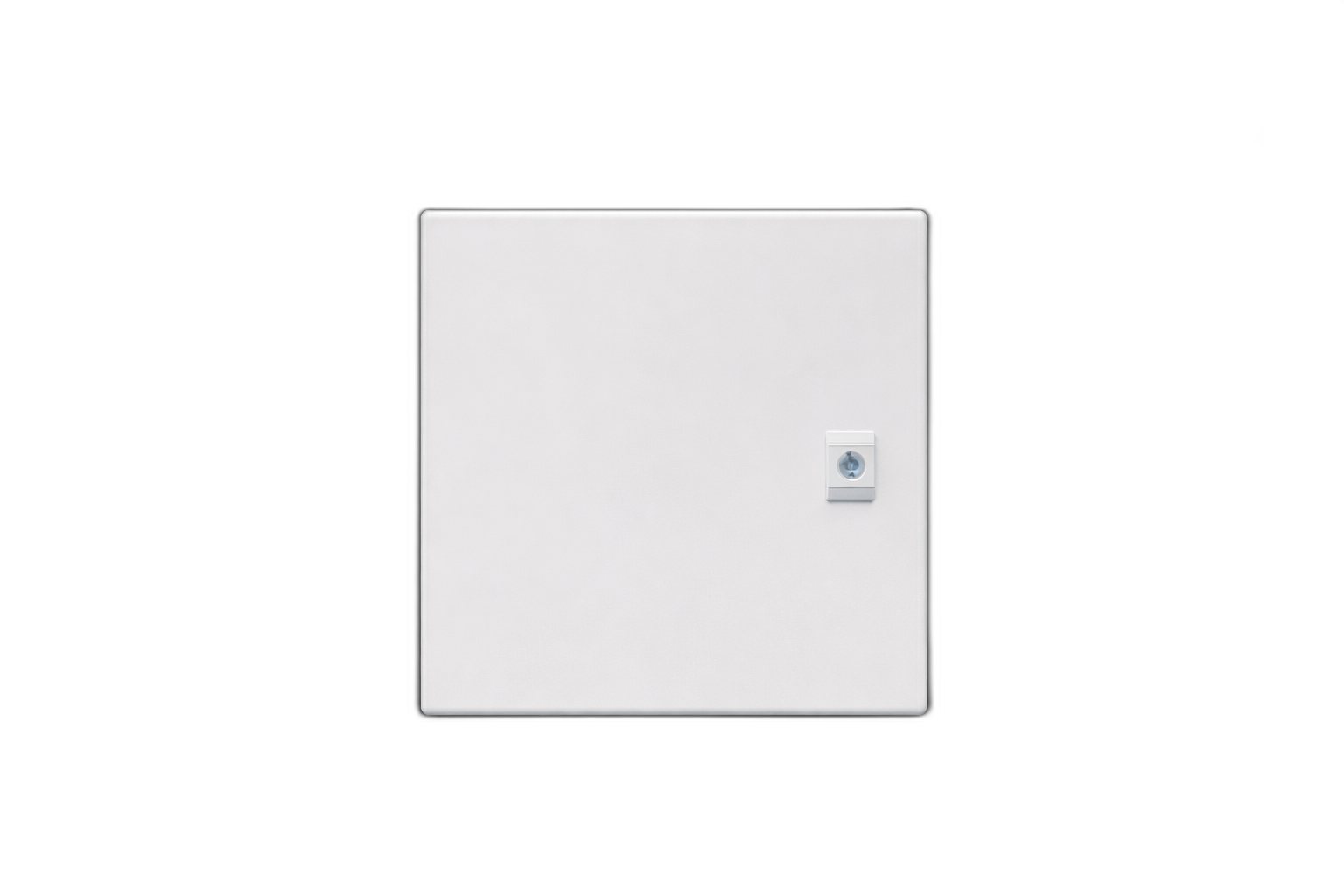

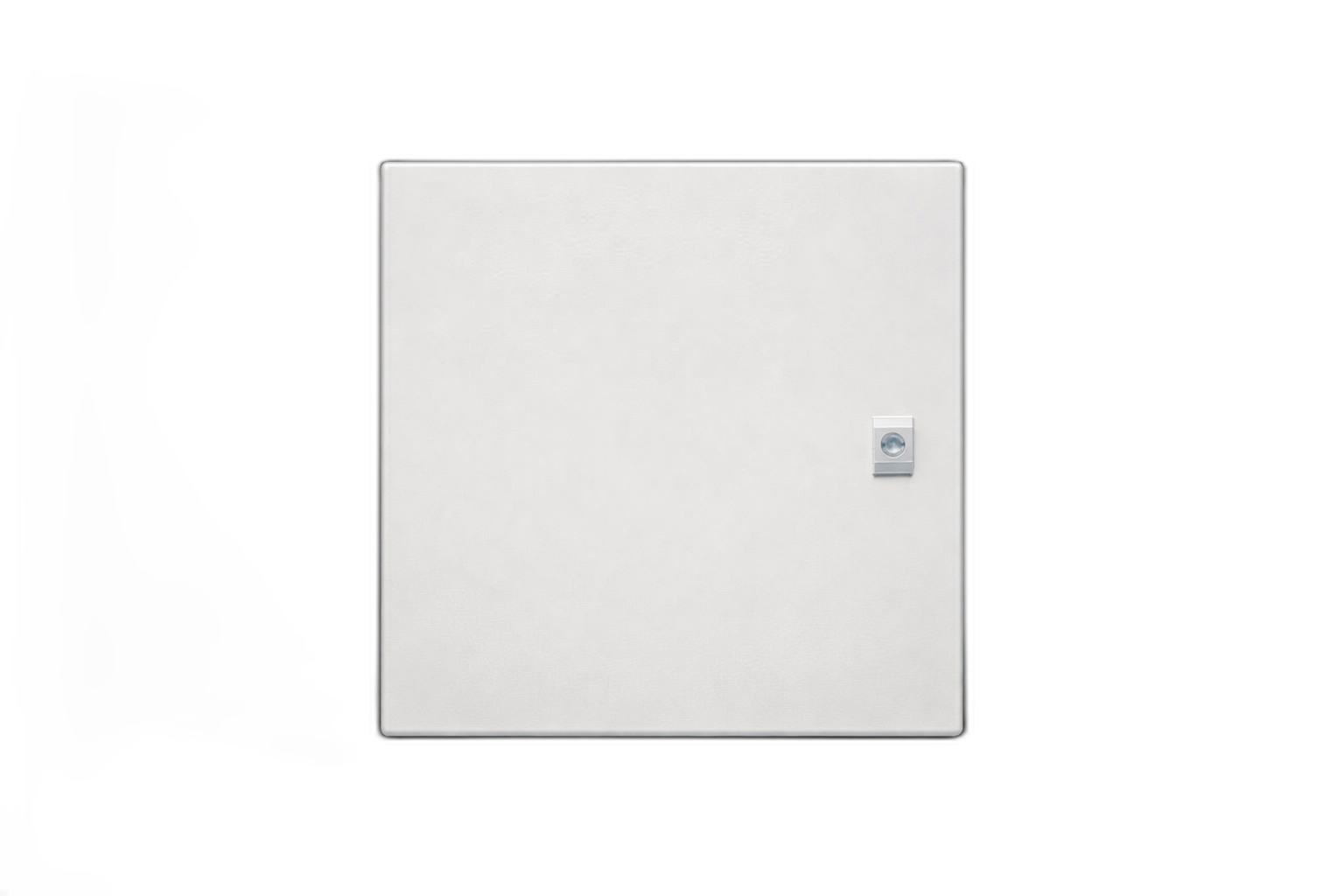

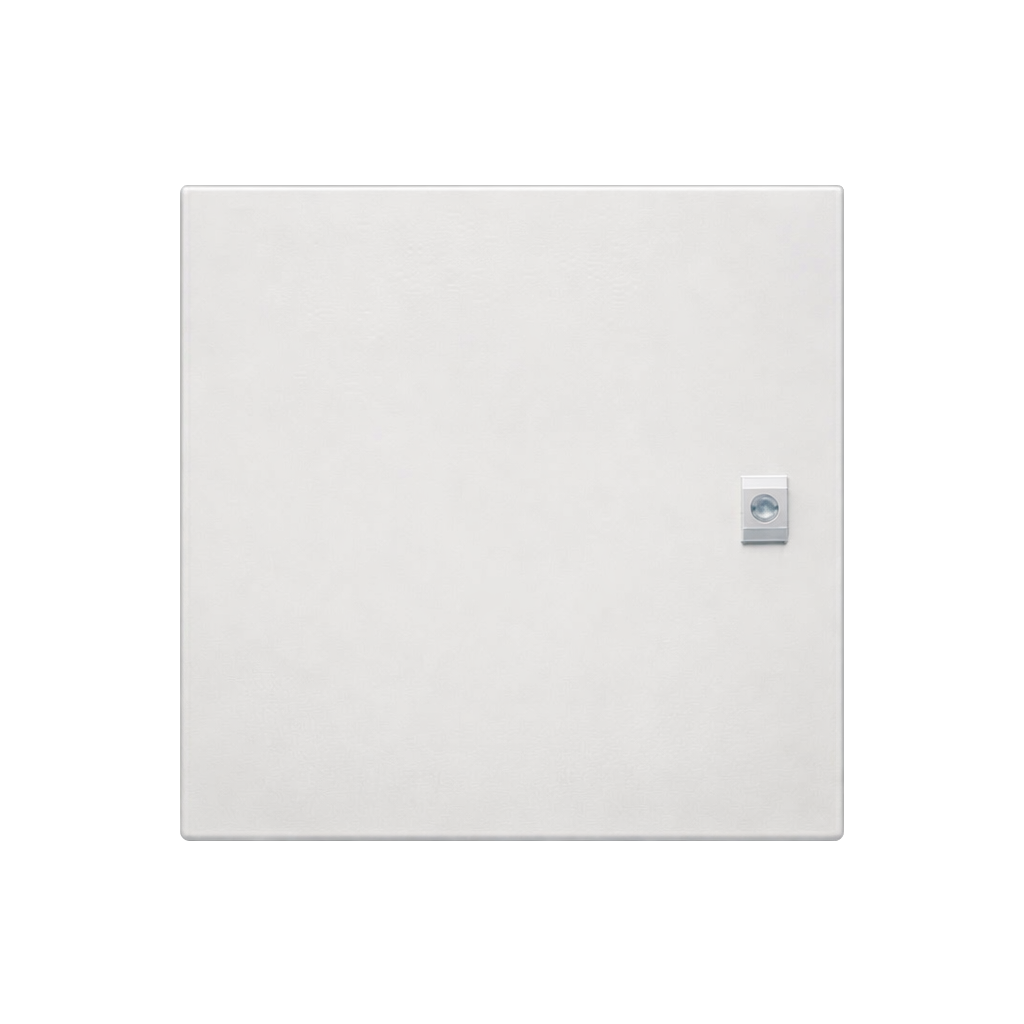

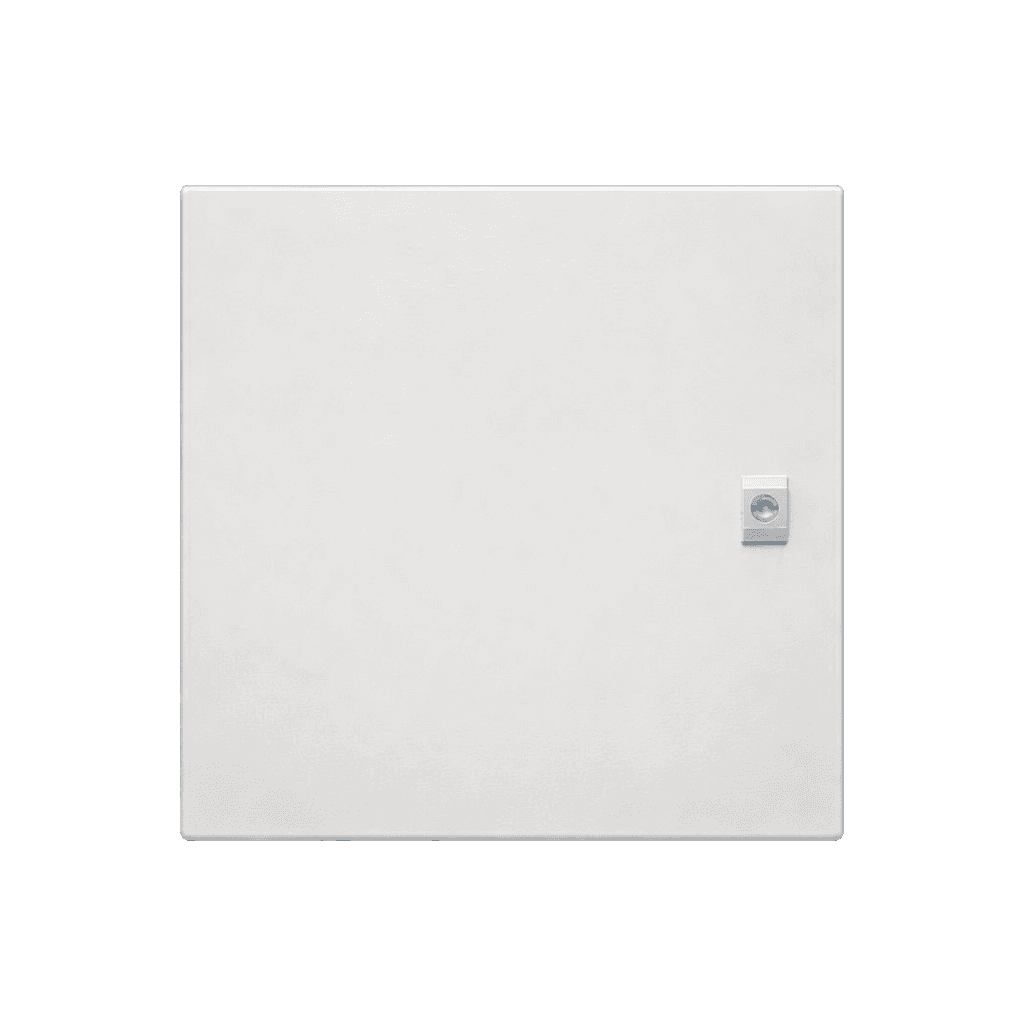

| Enclosure | Metal, key-lockable |
| Key Supplied | Yes |
| Certification | EN 12101-10 |
| Battery Compartment | Internal |
