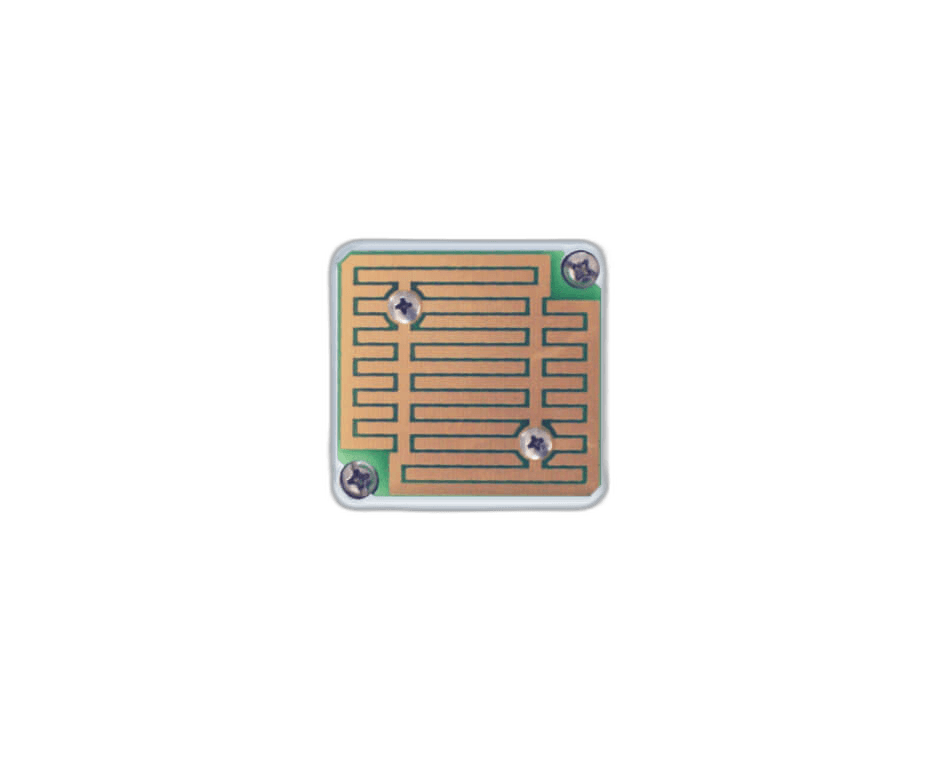

Product image 1
BS EN12101In Stock

Ventec RS 400 AOV Rain Sensor

From£75.00+VAT
Ventec RS 400 AOV Rain Sensor—
£75.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support

Datasheets & Downloads

1 file
DATA SHEET
2020-03_RS-400-aov-DS-v4.pdf
Download
UK supplied & supported

Ventec RS 400 Rain Sensor

A weatherproof IP65 rain sensor that signals the AOV control panel to close ventilators the moment precipitation is detected — protecting building interiors from water ingress through open roof vents without compromising life-safety ventilation.

Heated Sensing Grid
Conductivity measurement on a heated surface ensures fast, reliable detection in cold weather and after evaporation.
IP65 Rated
Sealed enclosure withstands UK outdoor conditions on roofs and exposed facades.
Adjustable Delay
DIP switch tunes the rain drop-out delay to avoid nuisance closures from light showers.
Fail-Closed Option
Configurable automatic close on power failure for unattended buildings.
Safety Override
Fire and smoke detection signals always override the rain-close command.
Auto Reset
Ventilators reopen automatically once the sensor surface dries and rain has ceased.
80mmW & H
IP65Ingress Rating
60V / 2ACircuit Output
24VDC Operation

What it does

The RS 400 continuously monitors a heated resistive sensing grid for the conductivity signature of rainfall. On detection, it signals the connected AOV control panel to close all ventilators in the rain-protected zone. Once the sensor surface dries and the rain has ceased, the panel releases the close signal and ventilators return to their previous state.

Where it’s specified

Essential on all O Range and 400 Series installations where roof ventilators remain open during day ventilation, overnight purge or weekends. Standard practice for naturally ventilated buildings in the UK climate where unattended open ventilators would risk rain penetration.

Integration with the AOV system

Wired into the dedicated rain-sensor input on the AOV control panel. The configurable drop-out delay allows the integrator to tune the sensor against site conditions. Fire and smoke inputs always take priority — the RS 400 will never hold a ventilator closed when life-safety calls for it open.

Standards & Compliance

  • BS 7346-8
  • BS EN 12101-2 systems
  • IP65 outdoor rated
  • 24V DC AOV ecosystem
  • UK supplied

Need help specifying environmental protection?

Our UK technical team can advise on sensor positioning and integration with your AOV control panel.

Call 01202 725 677

Technical Specifications

SpecificationDetail
Detection MethodConductivity sensing on a heated grid
Dimensions80mm (W) x 80mm (H)
Voltage24V DC – 230V
Circuit Output60V / 2A
IP RatingIP65
ZonesSingle
ConfigurationDIP switch for parameter setting; adjustable drop-out delay
Power-Loss BehaviourAutomatic close (adjustable)
Override BehaviourOverridden by fire / smoke detection — safety priority
StandardsFor use within BS 7346-8 and BS EN 12101-2 compliant SHEVS
