Ventec OSTRO Access 1m2 GFA Stairwell AOV Kit
The Ventec AOV OSTRO 1.0m² GFA Access Natural Smoke Ventilator is a roof-mounted automatic opening vent with access functionality, designed for natural smoke and heat exhaust ventilation in commercial and residential buildings.
Ventec OSTRO Access 1m2 GFA Stairwell AOV Kit
Kit Contents
1x Ventec OSTRO Access 1m2 Roof Vent
Can be used on both flat and sloping roofs up to 15° in various types of facilities such as: production and storage halls, logistic centres, public buildings, retail and service buildings and residential buildings. The Ventec Ostro is EN12101-2 certified and Approved Document L compliant.
1x Ventec W400 Battery Backup
The control unit is supplied with two 12v 4.5 Ah in-series batteries, that are kept charged when the mains power supply is available. When power is unavailable they guarantee a 72-hour period in standby mode allowing the execution of a complete emergency opening command as prescribed by EN 12101-10.
2x Ventec FS 400 Fire Override Switches
Manual override control for smoke ventilation systems, allowing fire fighters to directly open and close smoke vents and louvres as required.
1x Ventec SD 400 Optical Smoke Detector
Detector incorporates a pulsing LED located within the housing of the detector. The external detector moulding has an indicator LED which is clear in quiescent state but produces a red light in alarm.

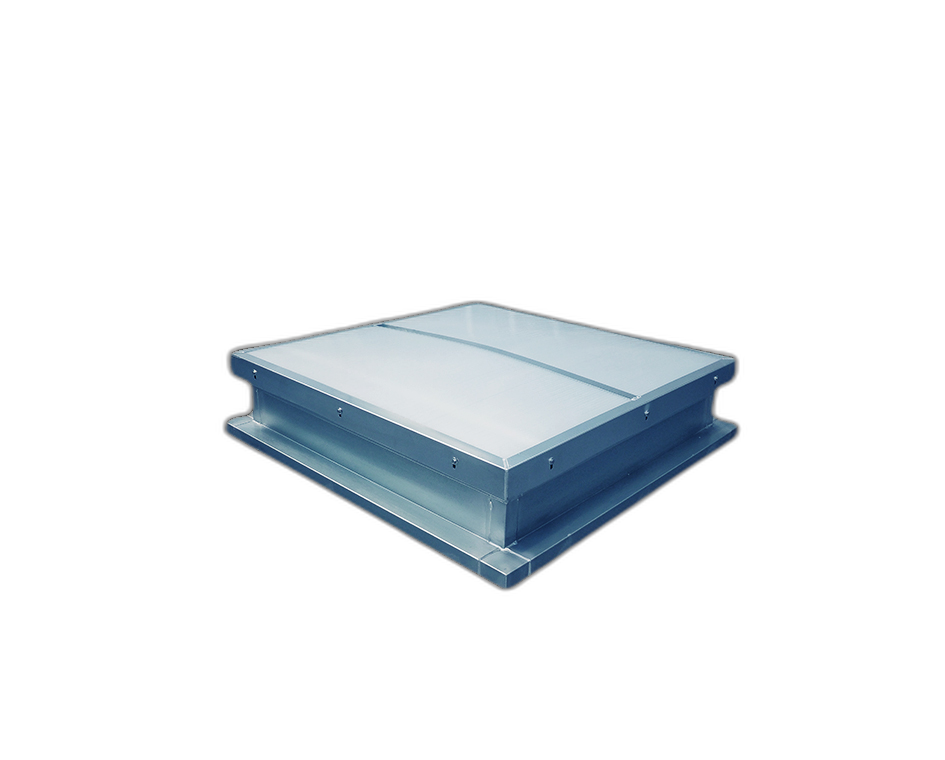

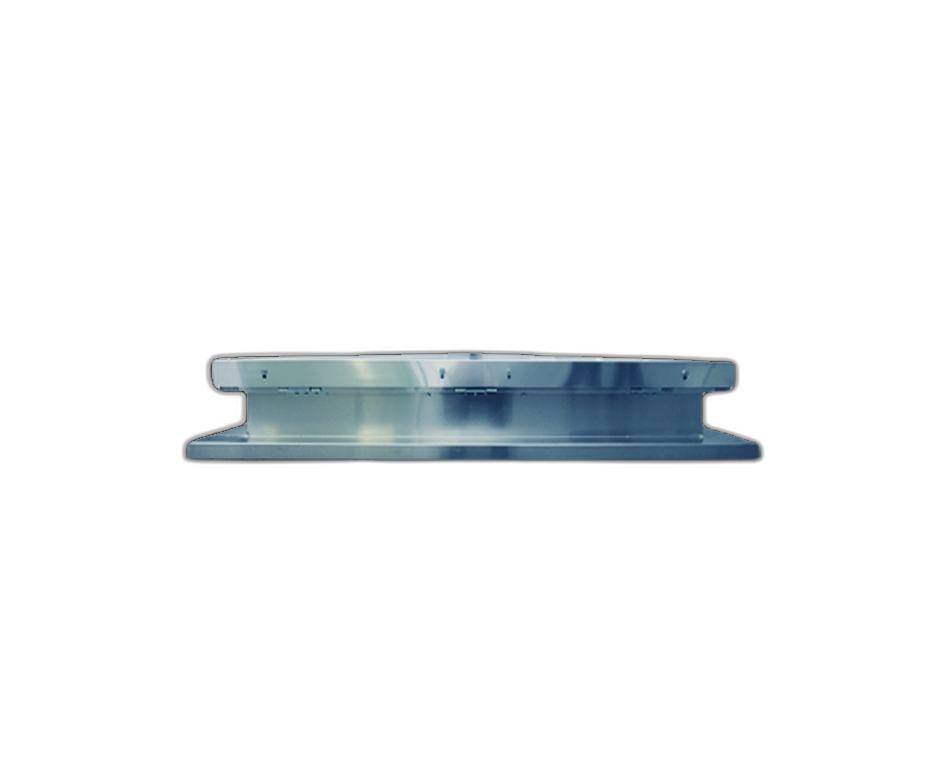

Ventec AOV OSTRO Access

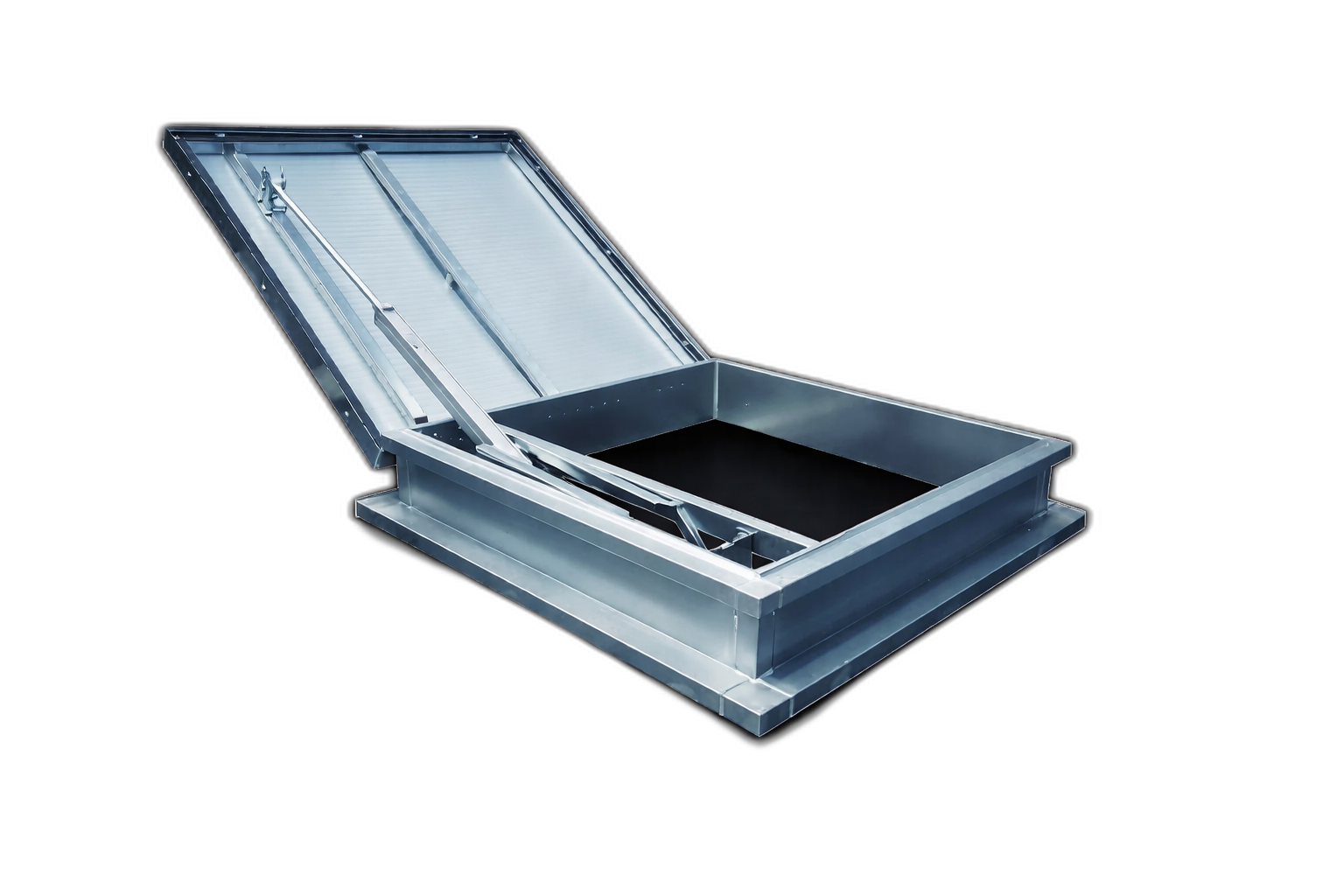

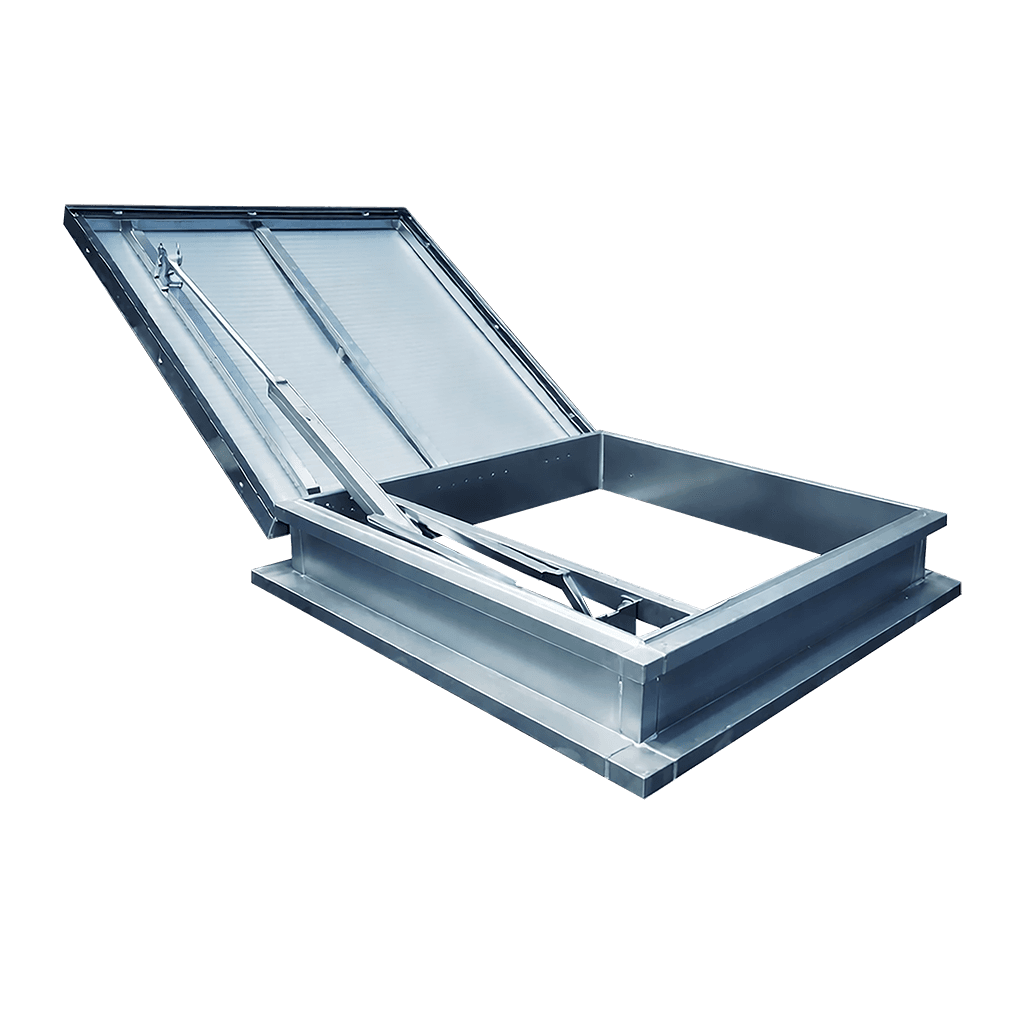

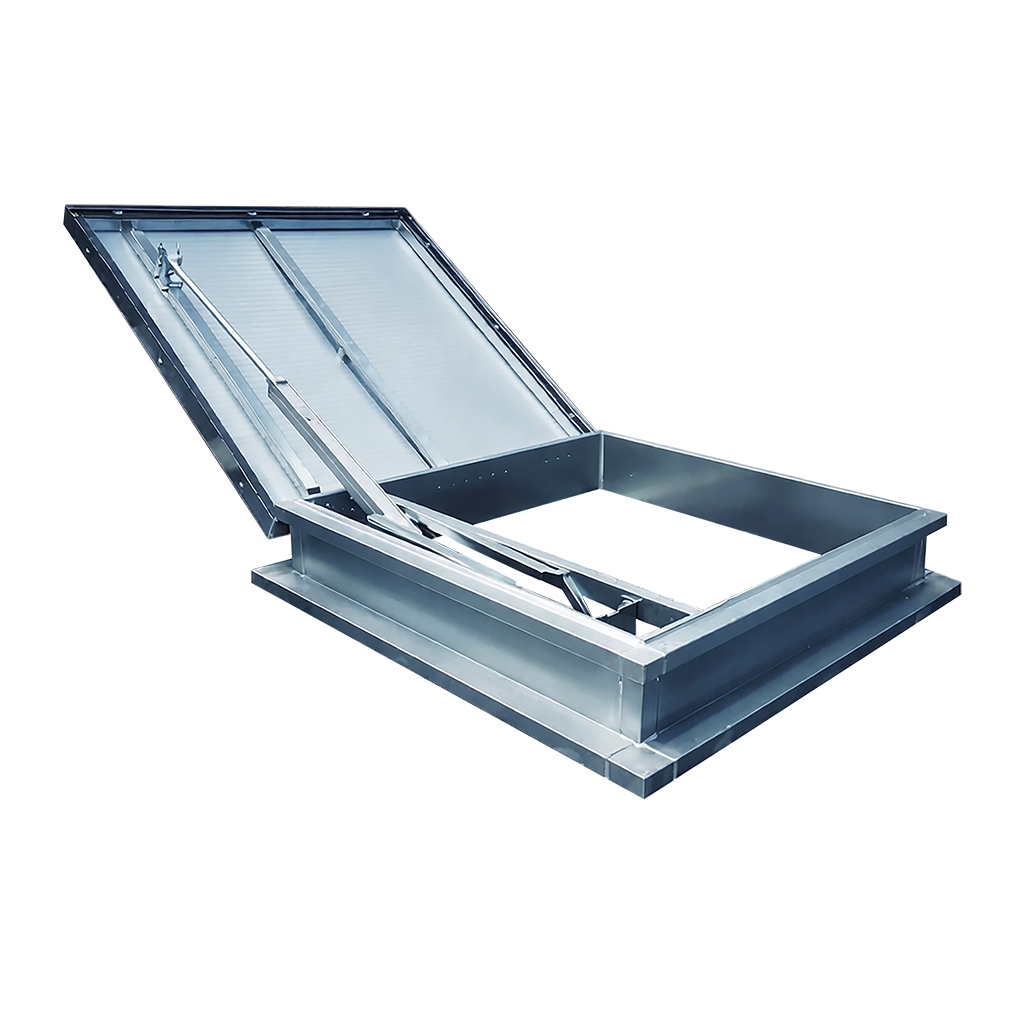

Combines certified BS EN 12101-2 smoke ventilation with safe roof access capability. Offset actuator design enables full lid opening for maintenance personnel.
Why specify the Ventec AOV OSTRO Access
Smoke Ventilation + Roof Access. Combines certified BS EN 12101-2 smoke ventilation with safe roof access capability. Offset actuator design enables full lid opening for maintenance personnel.
Document L Compliant. U-value of 2.92 W/m²K meets Approved Document L thermal performance requirements. Insulation options allow customisation to project-specific thermal targets.
Versatile Application. Suitable for flat and pitched roofs up to 15° across production halls, logistics centres, public buildings, commercial properties and residential developments.
Configuration options
1.06m² GFA (Standard). Standard in-stock size with 1100mm x 1100mm structural opening. 10mm opal polycarbonate lid. 30mm PIR insulated galvanised steel base. Weight approx. 100 kg.
Custom Options (Bespoke). Non-standard sizes, lid options and base insulation configurations available on request. Flange profile customisable to suit various roofing types.
Technical Specifications
Technical Specifications
| Specification | Detail |
|---|---|
| Structural Opening | 1100mm(W) x 1100mm(L) |
| Opening | 140° |
| Geometric Free Area | 1.06m² |
| Voltage | 24v |
| Lid Finish | Opal Polycarbonate |
| Base Height | 200mm |
| Roof Access | Yes |
| Document L compliant | Yes |
| GFA | up to 2.5m² |
| Opening angle | 140° |
| Battery standby | 72 hours |
| With Access | Roof 140° opening |
| Lid Options | Poly, insulated or dome |
| Aerodynamic Free Area | 0.74m² |
| Certification | BS EN 12101-2 |
| Compliance | Approved Document L |
| Maximum Opening Angle | 140° |
| Opening Time | < 60 seconds |
| Reliability (Smoke) | Re 50 |
| Reliability (Daily) | Re 10000 |
| Snow Load | SL 250 |
| Wind Load | WL 1500 |
| Operating Temp Low | -25°C |
| Resistance Temp High | B 300 (300°C) |
| Operating Voltage | 24Vdc |
| Current Consumption | 1.6 amps |
| Cable Cores | 2 Core + Earth |
| Upstand Outer (max.) | 1500mm(W) x 1500mm(L) |
| Flange Outer | 1560mm(W) x 1560mm(L) |
| Base Cover Outer | 1566mm(W) x 1566mm(L) |
| U-value | 2.92 W/m²K |
| Base Material | 1.25mm galvanised steel |
| Base Insulation | 30mm PIR panel (standard) |
| Lid | 10mm opal polycarbonate (standard) |
| Upstand Height | 150mm (min.) |
| Flange Width | 230mm (standard) |
| Weight | Approx. 100 kg |
| Roof Pitch | Flat to 15° |
