BS EN12101In Stock

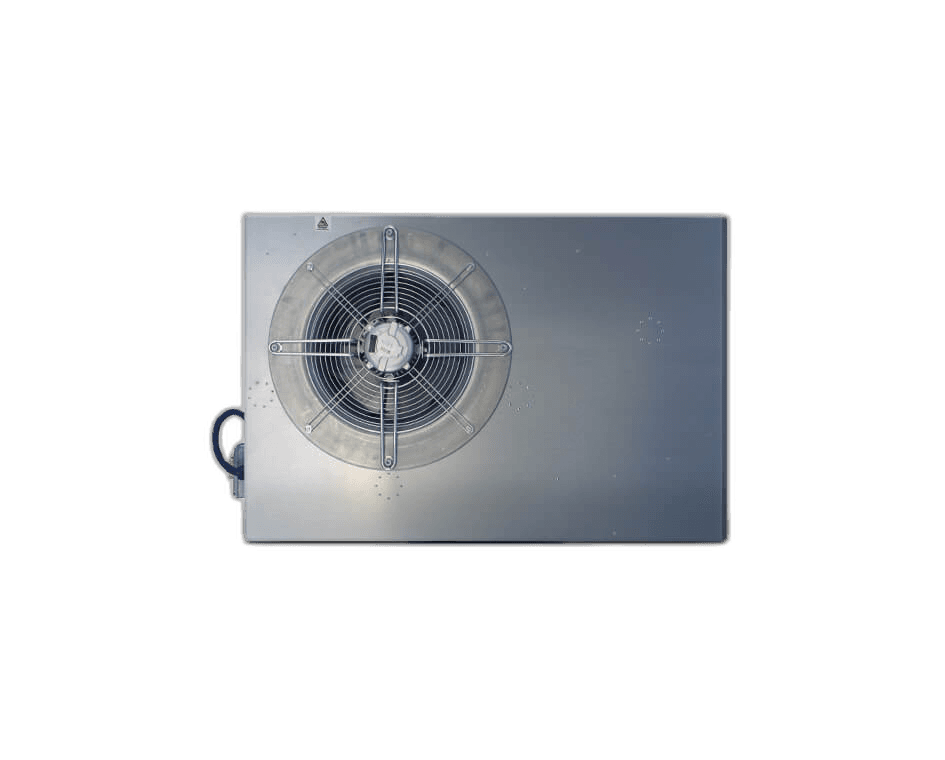

Ventec AOV INDUCT 50n Induction Fan

Our Car Park induction fan has been designed for smoke control in car parks, enclosed spaces & underground areas and all are available for next day despatch

From£2,075.00+VAT
Ventec AOV INDUCT 50n Induction Fan—
£2,075.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support

Datasheets & Downloads

2 files
DATA SHEET
2020-03_INDUCT-CP-FAN-aov-data-sheet_v3.pdf
Download
DATA SHEET
ventec-aov-induct-50n-induction-fan-1384_VentTrade-Ventec_2000-CP_INDUCT_Car_park_Impulse_Fan_Elta.pdf
Download
UK supplied & supported

Ventec INDUCT E50N Impulse Fan

A ductless car park ventilation fan that throws a high-velocity jet of air across the slab — clearing exhaust fumes and smoke towards extract points without the bulk and cost of conventional ducted systems.

Ductless Design
Eliminates ductwork — saves ceiling space, simplifies coordination and enables more parking levels per building.
High Thrust
54N high-speed thrust pushes large air volumes across the slab to entrain surrounding contaminants.
Two-Speed Operation
High-speed for smoke clearance, low-speed (12N) for daily CO emissions extract — one unit handles both duties.
IP65 Isolator
Supplied as standard with a lockable, fire-rated isolator for safe local switching.
Unidirectional
Single-direction airflow simplifies system design and zoning compared with reversible alternatives.
Compact Footprint
Smaller of the two INDUCT models — ideal for tight ceilings and where the calculated thrust requirement is moderate.
54NPeak Thrust
1.63m³/sVolume Flow
1.38kWMotor Power
75dBA@ 1m, High Speed

What it does

The INDUCT E50N generates a high-velocity jet stream that entrains surrounding air and propels it towards extract points elsewhere in the car park — clearing CO and other fumes during daily operation, and rapidly purging smoke during a fire event. Because the fan moves the air directly through the open slab rather than through ductwork, it replaces tens of metres of duct with a single compact mounted unit.

Where it’s specified

Specified on covered, semi-enclosed and basement car parks where the smoke-clearance and pollutant-extract strategy is impulse-fan based. Standard practice on commercial and residential developments where slab heights are tight and ductwork would compromise headroom or parking-level economics.

Integration with the AOV system

Wires to the smoke-extract zone on the connected AOV control panel for automatic activation on fire signal. Both fan speeds are independently switchable, allowing the panel to drive low-speed daily ventilation and high-speed smoke purge from the same hardware.

Standards & Compliance

  • BS 7346 Part 7 car park systems
  • BS EN 12101-3 powered ventilators
  • IP65 isolator supplied
  • Fire-rated motor & isolator
  • UK supplied

Need help sizing your car park fans?

Our UK technical team can calculate required thrust and fan count for your slab dimensions.

Call 01202 725 677

Technical Specifications

SpecificationDetail
Thrust54N / 12N (high / low speed)
Speed1447 / 733 rpm
Volume Flow Rate1.63 / 0.80 m³/s
Motor Power1.38 / 0.35 kW
Sound Pressure75 / 59 dBA @ 1m
Full Load Current3.20 / 1.36 A
Short Circuit Current16.0 / 4.08 A
AirflowUnidirectional
IsolatorIP65 lockable, fire-rated (supplied as standard)
ApplicationCar park ventilation / smoke clearance
