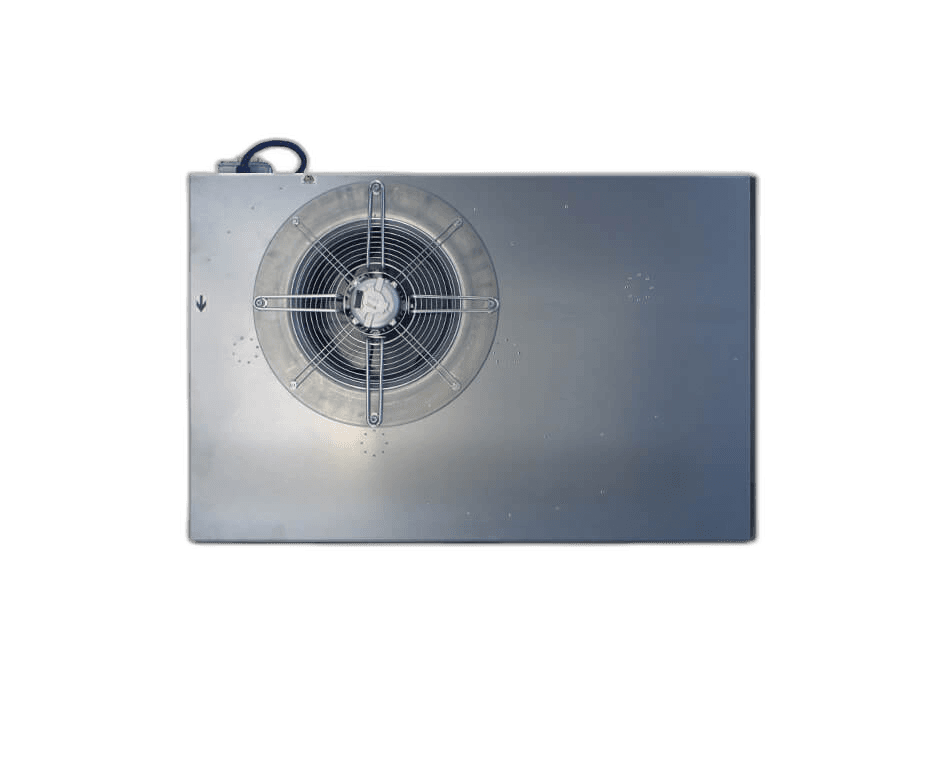

Product image 1
1 / 2
BS EN12101In Stock

Ventec AOV INDUCT 100n Induction Fan

Our Car Park induction fan has been designed for smoke control in car parks, enclosed spaces & underground areas and all are available for next day despatch

From£2,295.00+VAT
Ventec AOV INDUCT 100n Induction Fan—
£2,295.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support

Datasheets & Downloads

2 files
DATA SHEET
2020-03_INDUCT-CP-FAN-aov-data-sheet_v3.pdf
Download
DATA SHEET
ventec-aov-induct-100n-induction-fan-1384_VentTrade-Ventec_2000-CP_INDUCT_Car_park_Impulse_Fan_Elta.pdf
Download
UK supplied & supported

Ventec INDUCT E100N Impulse Fan

The high-capacity sister to the E50N — almost double the thrust and airflow for larger car park decks, longer throw distances and multi-bay configurations.

98N Peak Thrust
Pushes nearly twice the air mass of the E50N, suitable for deep-plan car parks and multi-bay throws.
Ductless Design
Open-slab airflow eliminates ducting — preserves headroom and enables tighter parking-level stacking.
Two-Speed
Low-speed (18N) for daily CO extract, high-speed (98N) for smoke clearance — both from one unit.
IP65 Isolator
Lockable, fire-rated isolator supplied as standard for safe and compliant local switching.
Unidirectional
Single-direction airflow keeps system design simple compared with reversible alternatives.
Range Companion
Mix with INDUCT E50N units in the same scheme where lower-thrust zones are sufficient elsewhere.
98NPeak Thrust
2.65m³/sVolume Flow
2.42kWMotor Power
76dBA@ 1m, High Speed

What it does

The INDUCT E100N generates a high-velocity jet that entrains surrounding air and propels it toward the extraction points. Operated at low speed during normal conditions, it clears CO and other fumes from the car park slab. On a fire signal from the AOV panel, it switches to high speed to rapidly purge smoke and maintain tenable conditions on the escape route.

Where it’s specified

The E100N is the right fan where the calculated thrust requirement exceeds the E50N’s 54N rating — typically large flat-plate car parks, multi-bay zoning, basement decks with long throw distances, or schemes consolidating zone count by using higher-capacity units.

Integration with the AOV system

Both speeds are independently controllable from the AOV control panel: low-speed contactor for daily ventilation, high-speed contactor for smoke purge. The supplied IP65 isolator allows safe local isolation for service without disturbing the rest of the system.

Standards & Compliance

  • BS 7346 Part 7 car park systems
  • BS EN 12101-3 powered ventilators
  • IP65 isolator supplied
  • Fire-rated motor & isolator
  • UK supplied

Need help sizing your impulse fans?

Our UK technical team can calculate required thrust and fan count for your slab dimensions.

Call 01202 725 677

Technical Specifications

SpecificationDetail
Thrust98N / 18N (high / low speed)
Speed1423 / 729 rpm
Volume Flow Rate2.65 / 1.35 m³/s
Motor Power2.42 / 0.61 kW
Sound Pressure76 / 60 dBA @ 1m
Full Load Current5.42 / 2.12 A
Short Circuit Current30.4 / 7.21 A
AirflowUnidirectional
IsolatorIP65 lockable, fire-rated (supplied as standard)
ApplicationCar park ventilation / smoke clearance
