Product image 1
BS EN12101In Stock

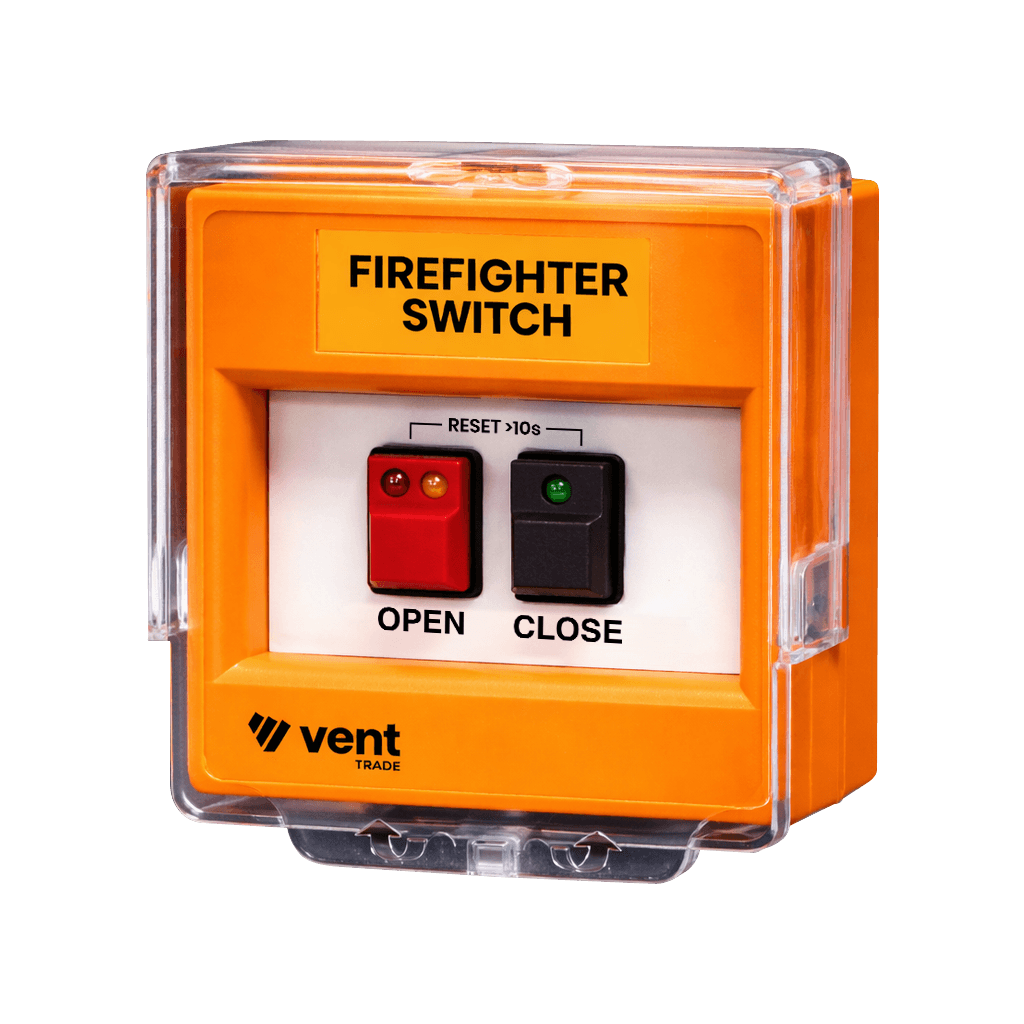

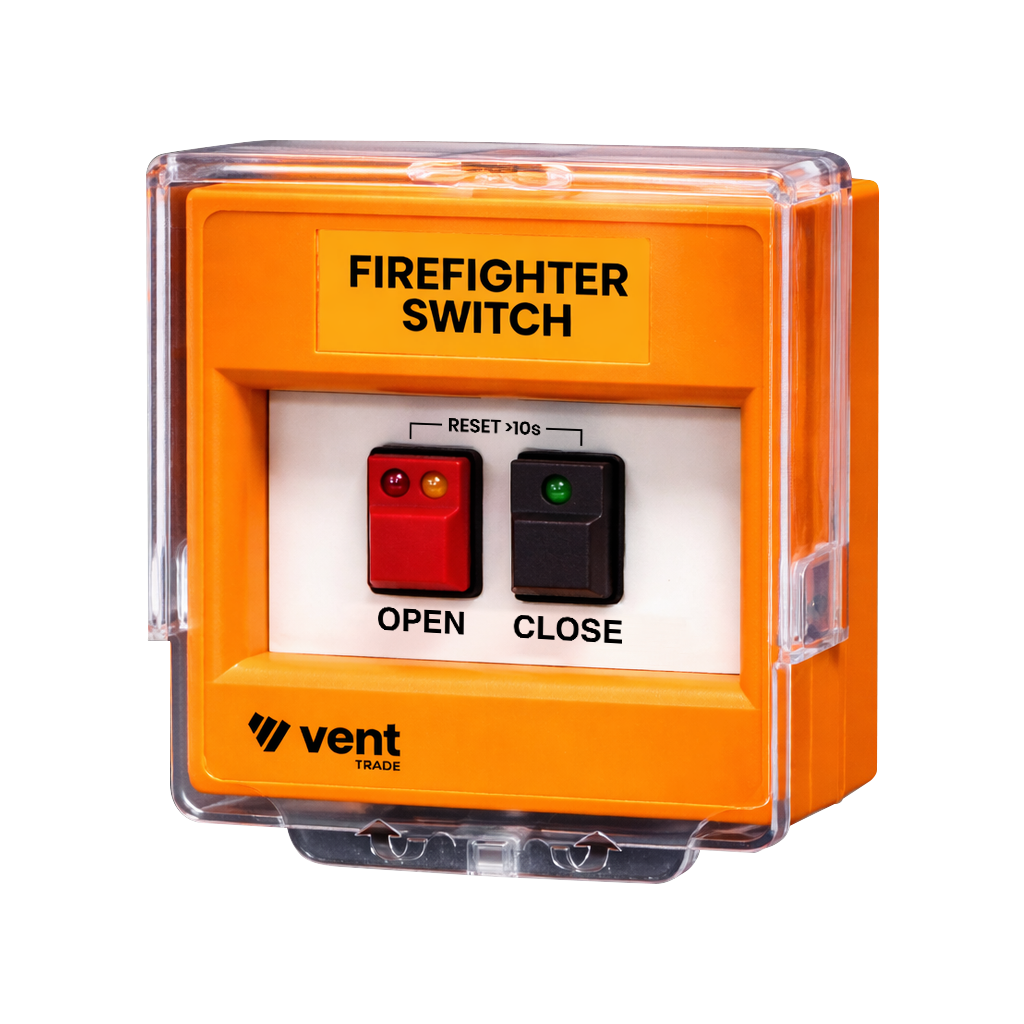

O Range Firefighter Switch

Direct manual override for firefighters to open or close smoke vents and louvres. High-visibility orange finish ensures immediate identification in emergency situations.

From£75.00+VAT
O Range Firefighter Switch—
£75.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support

Datasheets & Downloads

2 files
DATA SHEET
O_Range_Firefighter_Switch_Data_Sheet.pdf
Download
FIREFIGHTER SWITCH DATA SHEET
firefighter-switch-O_Range_Firefighter_Switch_Data_Sheet.pdf
Download
UK supplied & supported

O Range Firefighter Switch

Direct manual override for firefighters to open or close smoke vents and louvres. High-visibility orange finish ensures immediate identification in emergency situations.

Open / Close-Reset Controls
Two-button manual override with Open and Close-Reset functions for direct firefighter control of smoke vents and louvres.
Deep Orange RAL 2011
High-visibility deep orange finish (RAL 2011) for immediate identification by firefighters and emergency personnel.
Intelligent Activation
Designed to work in conjunction with the O Range control panel. Firefighter switches become active only during smoke events for added safety.
Dual Purpose
Smoke ventilation override and daily environmental ventilation control from a single switch. Can also be used to manually activate window actuators or vents.
1 Zone Control
Each firefighter switch controls one zone, providing targeted manual override for the specific area where firefighters need access.
Firefighter Entry Point
Should be installed at the closest suitable position adjacent to the firefighter point of entry for immediate access.
O Range compatiblesystem
BS EN 12101-9certified
1 zone controlper switch
Smoke + envirodual purpose

Why specify the O Range Firefighter Switch

Firefighter Override. Direct manual override for firefighters to open or close smoke vents and louvres. High-visibility orange finish ensures immediate identification in emergency situations.

Intelligent Design. Works with the O Range control panel so firefighter switches are only active during smoke events, preventing accidental activation during normal building operation.

Versatile Wiring. 7 core + earth cable supports both 3-core and 7-core firefighter switch configurations, making it ideal for new installations and refurbishment projects.

Technical Specifications

SpecificationDetail
Dimensions87mm x 87mm x 52mm
Voltage24v DC
Core Type7-Core + ⏚
ZonesSingle & Multi zone
SystemO Range compatible
CertifiedBS EN 12101-9
Per Switch1 zone control
Dual PurposeSmoke + enviro
Operating Voltage24Vdc
No. of Cable Cores7 Core + Earth
Zone Control1 zone
ColourDeep Orange RAL 2011
ControlsOpen / Close-Reset buttons
MountingFlush or surface mount
