BS EN12101In Stock
Control Status Panel
From£450.00+VAT
Control Status Panel—
£450.00
Control Status Panel
£450.00
Next Day Delivery
30 Day Returns
BS EN12101 Certified
Expert Support
Datasheets & Downloads
1 file
UK supplied & supported
O Range CSP

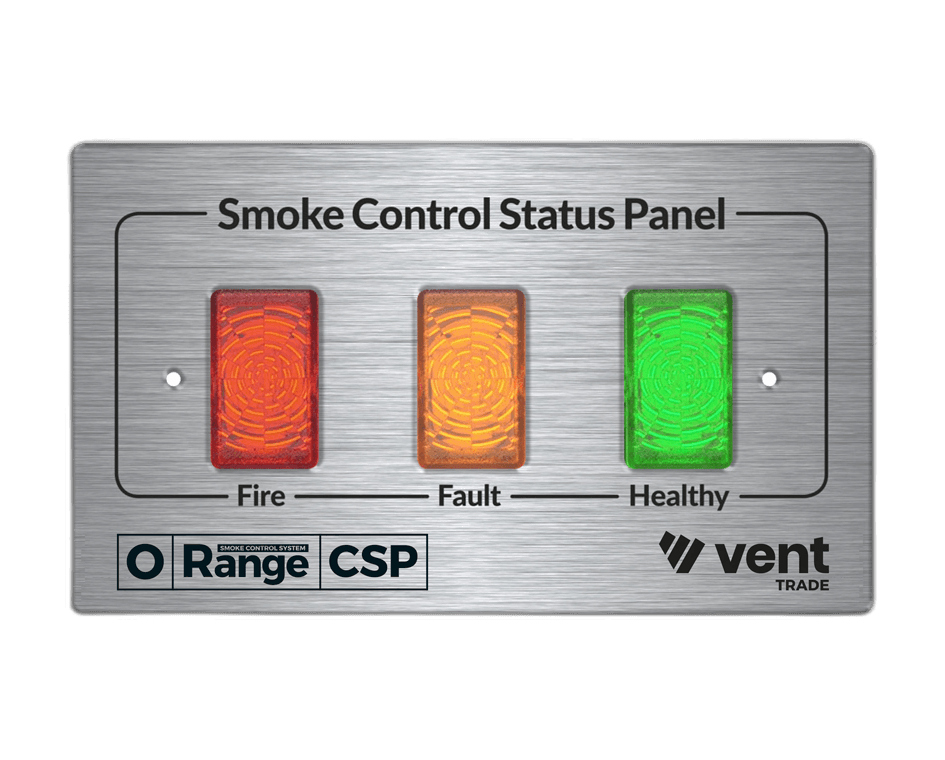

Red, amber and green LEDs give immediate visual indication of Fire, Fault or Healthy system status without needing to access the main control panel.
Fire / Fault / Healthy LEDs
Three status indication LEDs — red (Fire), amber (Fault) and green (Healthy) — provide immediate at-a-glance system status for authorised users.
Brushed Steel Fascia
Durable and stylish brushed steel fascia for a professional finish in any building environment.
3 Gang Back Box Included
Standard 3 gang back box supplied for straightforward flush or surface mounting.
Network Connection
Cat 5 network connection allows the CSP to communicate with networked O Range panels.
Bespoke Layout Options
Custom text for individual zone names (e.g. Floor 3 or West Wing). Available in 6, 9, 12, 15 or 18 LED layouts on request.
O Range Compatible
Designed to work with the O Range smoke control panel system. Wired back to the lowest O Range control panel in multi-zone installations.
O Range compatiblesystem
NetworkableCat 5 connection
Fire / Fault / Healthy3 LED status
Why specify the O Range CSP
Instant Status. Red, amber and green LEDs give immediate visual indication of Fire, Fault or Healthy system status without needing to access the main control panel.
Bespoke Configurations. Custom zone labels and 6 to 18 LED layout options allow the CSP to be tailored to your specific building and system requirements.
Professional Finish. Brushed steel fascia with 146mm x 86mm face plate provides a clean, professional appearance suitable for any building entrance or stair core.
Technical Specifications
Technical Specifications
| Specification | Detail |
|---|---|
| System | O Range compatible |
| Cat 5 Connection | Networkable |
| 3 LED Status | Fire / Fault / Healthy |
| Operating Voltage | 24Vdc |
| No. of Cable Cores | 4 Core + Earth |
| Network Connection | Cat 5 |
| Status LEDs | Red (Fire), Amber (Fault), Green (Healthy) |
| LEDs Included | Yes |
| Face Plate | 146mm x 86mm |
| Back Box | Standard 3 gang (included) |
| Fascia | Brushed steel |
| Bespoke Layouts | 6, 9, 12, 15 or 18 LED options |
